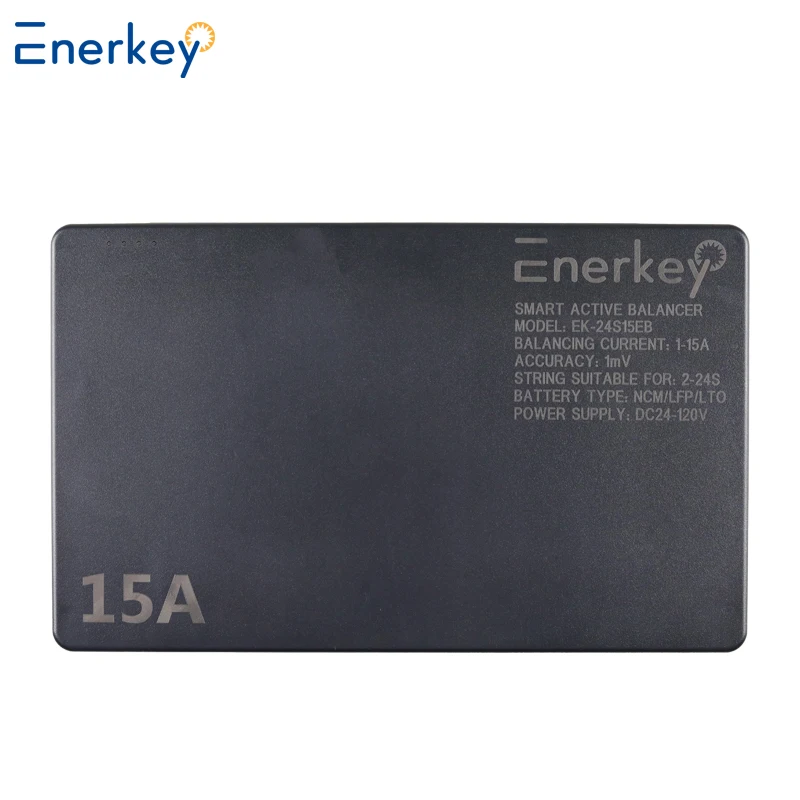

Enerkey 15A Smart Active Balancer 2S~24S Lifepo4 / Lipo/ LTO Battery Energy equalization connectivity APP with CAN Port
$201.52
Description
- Use: others
- Item Type: others
- Charger included: N
- Battery Included: No
- High-concerned chemical: None
- Model Number: EK-24S15EB
- Accessory Type: Battery Accessories
- Brand Name: ENERKEY
- Origin: Mainland China
- Product name: 15A 2S-24S Smart active balancer
- Battery type: 1.5V-4.5V Li-ion/Lifepo4/Lto
4TH EnerKey 15A Smart Active Balancer 3S 4S 5S 6S 8S 14S 16S 20S 21S 22S 24S Lifepo4 / Li-ion/ LTO Battery Equalization
Product Description
|
Product Name :
|
Smart Active Balance
|
Product model:
|
EK-B24S15EB
|
|
Brand :
|
Enerkey
|
Battery strings:
|
2S~24S
|
|
Battery Type :
|
NCM / LFP/ LTO
|
Surface Finishing :
|
HASL
|
|
Base material :
|
FR-4
|
Cascading :
|
Support
|
|
Copper Thickness :
|
2OZ
|
Board Thickness :
|
1.6mm
|
|

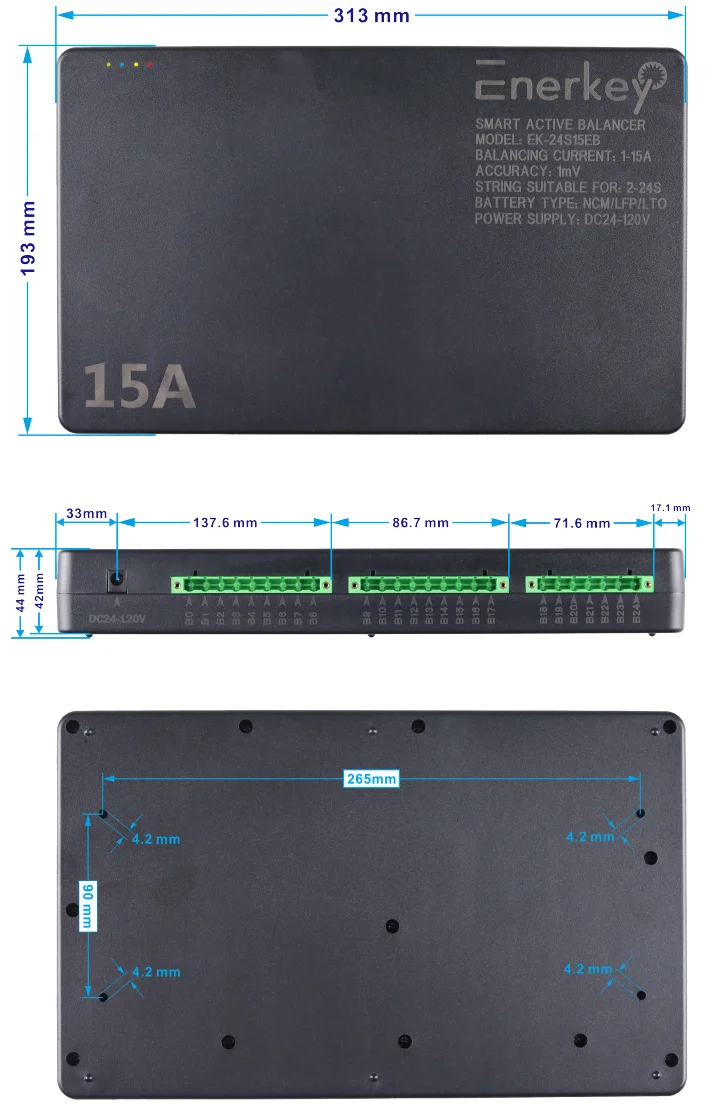

Product size :
|
L313 x W193 x T42(mm)
|
Weight with Package :
|
2530g
|
Product performance description
1.The Intelligent Active Equalizer (EK-24S15EB) is a balance management system tailored for large capacity series battery packs.
2.Support 2S to 24S battery packs,Voltage collection and balancing function.
3.The balance current is maximum 15A, and the balance current is independent of the pressure difference, even if it is reduced to 1mV, the balance current can maintain 15A.

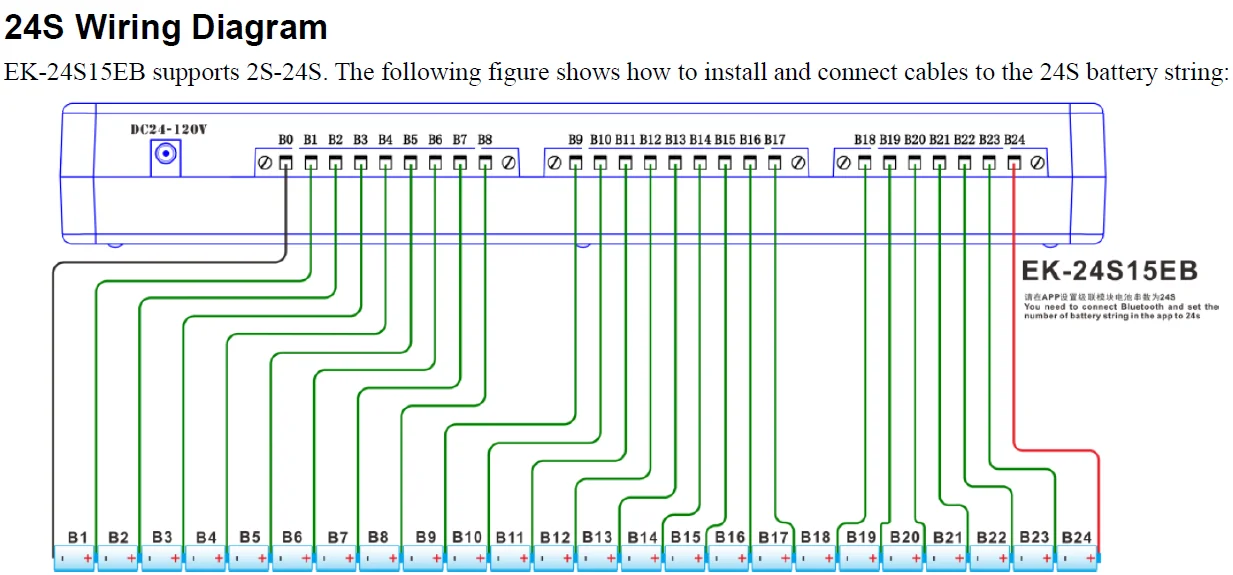

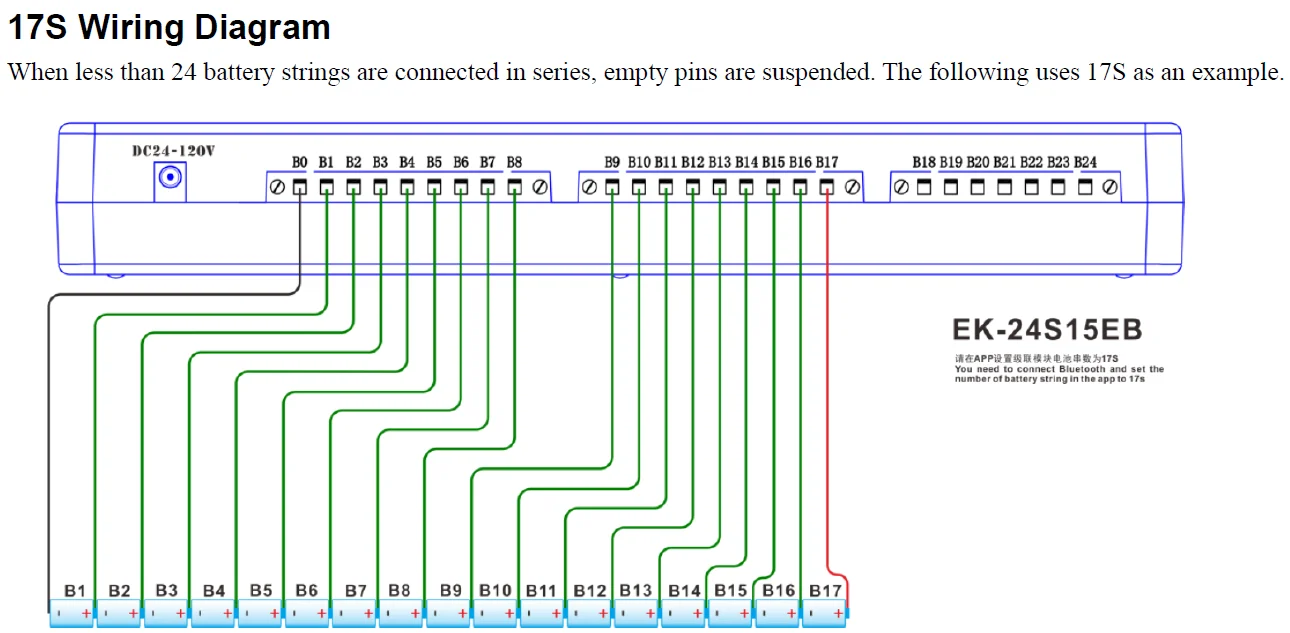

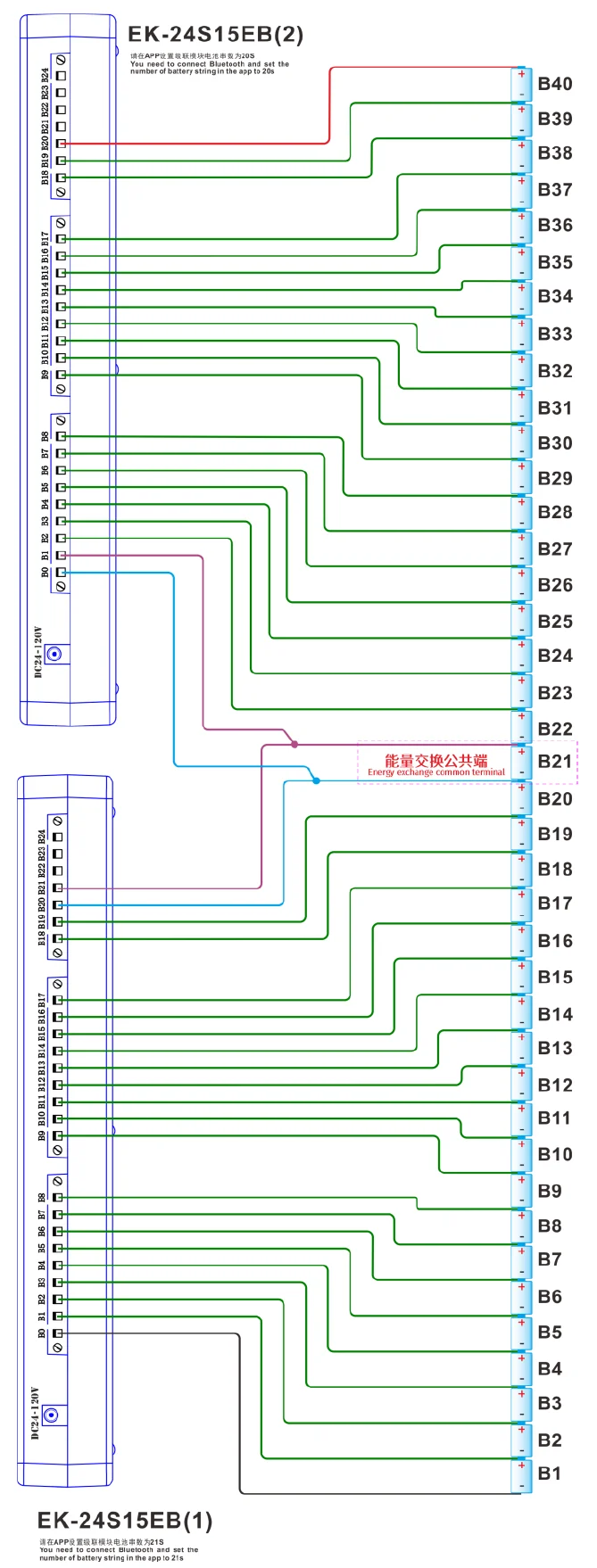

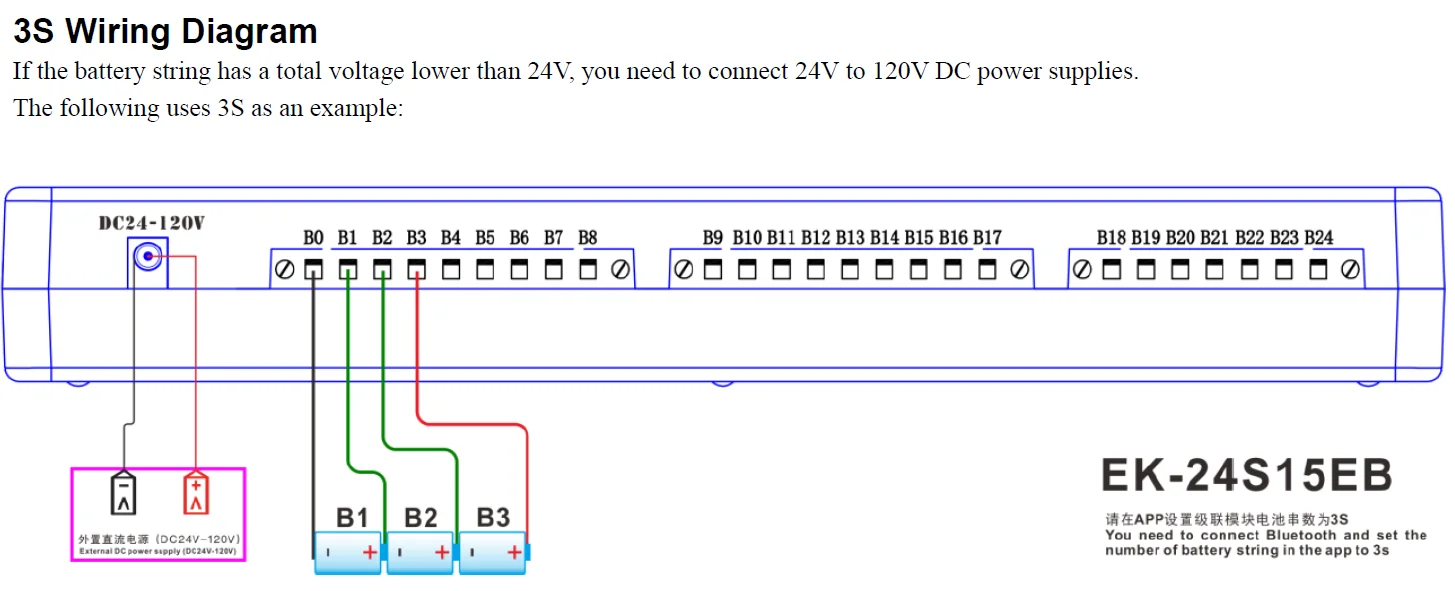

4. It supports the cascade mode please check the wiring above. If you need to use equalizer on your car, please operate according to the wiring diagram. We have taken the wiring diagram example of 24s cascading 36s, which theoretically supports infinite cascading……
5.It can be used in the battery PACK of small sightseeing car, scooter, shared car, high-power energy storage, base station backup power supply, solar power station and other products, and can also be used for battery balanced maintenance, repair and other occasions.

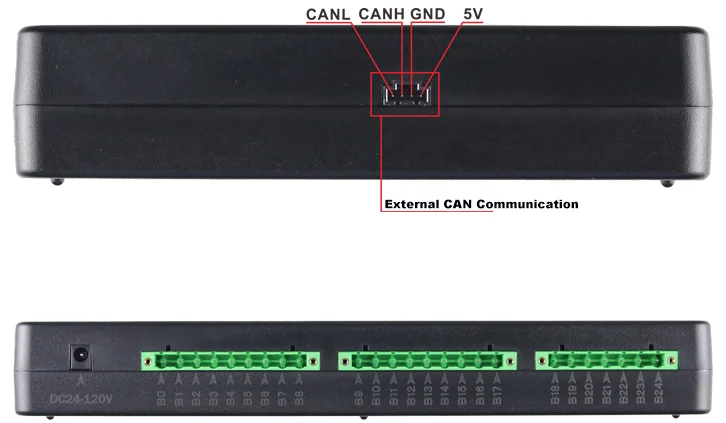

6. It has Bluetooth connect the APP and CAN communication port to connect PC to control your batteries.

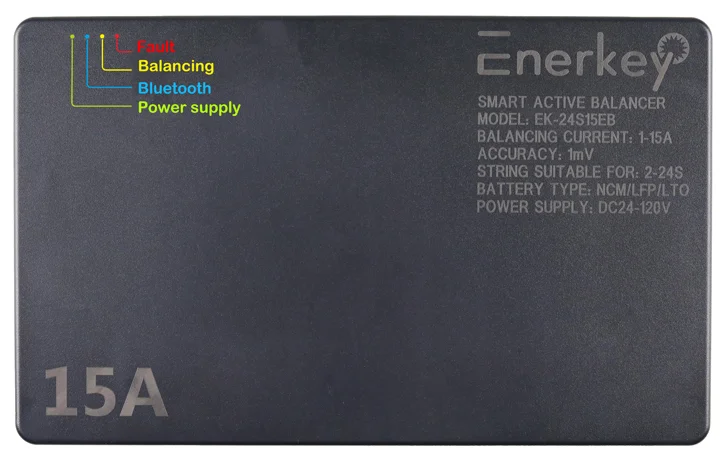

LED Indicator Light
Green- Power on; Steady on: Power good.Blue- Bluetooth on; Steady on: connection successful.
Flash: connection break.Yellow – Balancer on; Steady on: balance completion.
Flash: Balancing.Red – Device Fault; Steady on: batteries strings does
not match the setting; Flash: The resistance of
the balance line is too large.

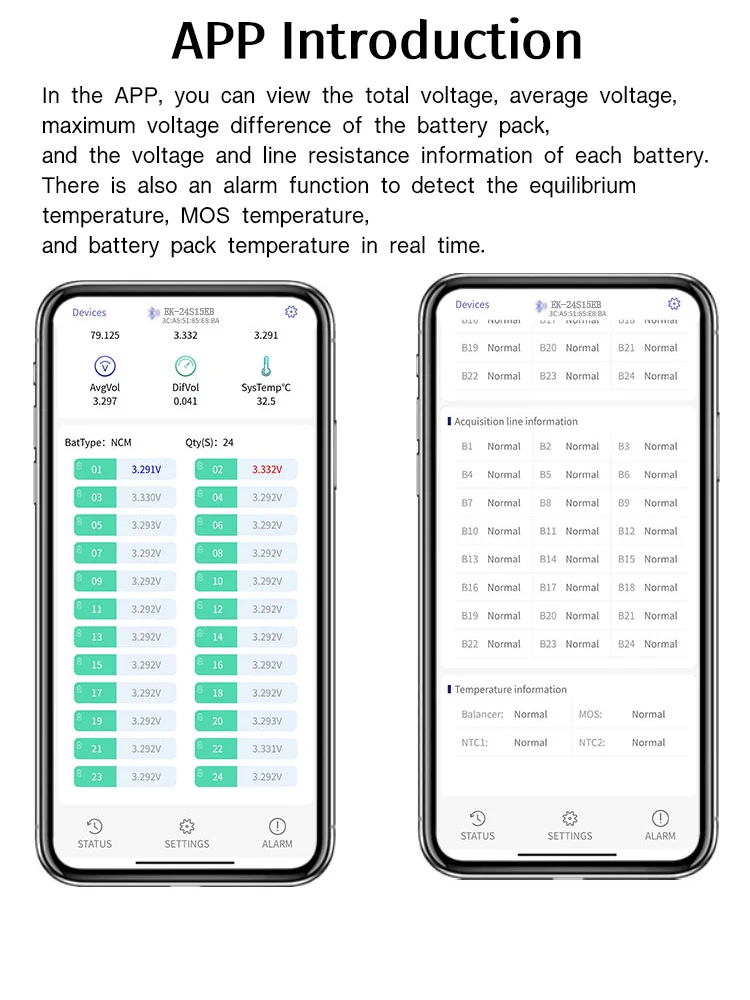

APP Installation and Use
APP custom settings:1-15A, because of constant current and constant voltage technology, The balanced current is independent of the battery pressure difference.
The APP has Android and IOS version. Password: “123456”1) IOS users download the APP : Search “Enerkey” in App Store to download
2) Android users download the APP:“http://www.enerkey.cn/” download
Energy transfer equalization
When starting equalization, High voltage is transferred to low voltage transmission at the same time to realize battery voltage balance.
Technical Parameters
|
Product Model
|
15A Smart Active Balancer for 2-24s (EK-B24S15EB)
|
||
|
Supported battery type
|
NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
|
||
|
Single cell voltage collection range
|
1.5V~4.5V
|
||
|
Undervoltage protects sleep voltage
|
APP can be customized Settings ：1.5-4.2V
|
||
|
Equilibrium method
|
Time-sharing single channel transfer, point-to-point energy transfer
|
||
|
Reverse protection
|
Support disorderly power on detection/protection
|
||
|
Equilibrium current
|
APP can be customized Settings: 1A~15A
|
||
|
Whether an external power supply is required
|
Battery-operated（Accuracy:3mV）
DC power supply（Accuracy:1mV）
|
||
|
External power supply
|
DC 24-120V
|
||
|
Voltage equalization accuracy
|
APP can be customized Settings ：1mV（TYP）
|
||
|
Power failure detection function
|
Support
|
||
|
Wrong wire protection function
|
Support
|
||
|
Fault alarm function
|
Support
|
||
|
Buzzer
|
APP can be customized Settings
|
||
|
Power Dissipation
|
At equilibrium≈1W，Stop equilibrium≈0.5W
|
||
|
Operating Temperature
|
-20℃ ~ +55℃
|
||
|
Application
|
Home energy storage、RV、Electric cars/bicycles/toys、Outdoor power
|
||
|

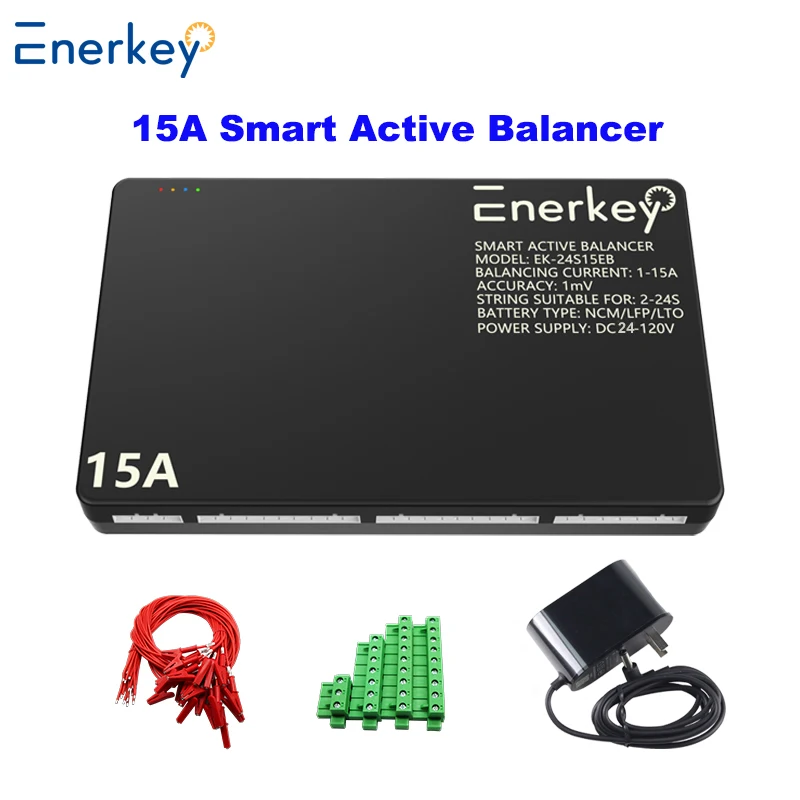

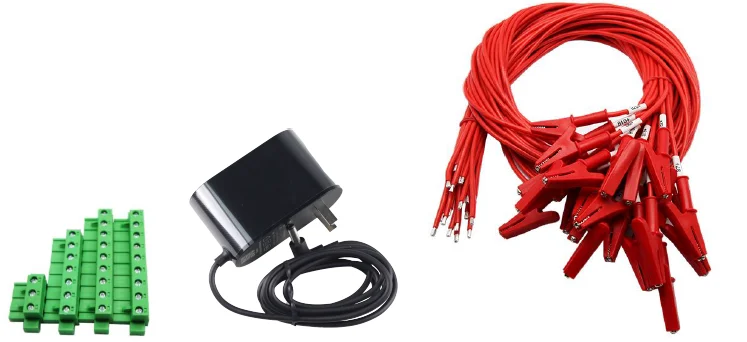

Packing list
|
24pcs 1m Alligator clip lines、Pitch 7.62mm Terminal、DC adapter
|
||
Product Use Tutorial
Packing and Shipping
We can ship out in 48hours after you ordered, The goods can be delivery on time.
Fastest Shipping Way: DHL/FedEx/UPS/TNT/EMS/Aramex or by Air (3-7days).
Faster Shipping Way: Aliexpress standard shipping (10-20days).
Slowly Shipping Way: Train/Sea/Car or others (30-45days).
