JEYI 4-Bay NVMe RAID Enclosure-TB 4 40Gbps Turbine Cooling,compatible with Mac/Windows,Individual & RAID Modes max 32TB
$179.54
- High-concerned chemical: None
- Supporting Hard Drive Capacity: 32TB
- External Interface: USB
- Package: Yes
- Size: 1.8″
- Model Number: JF2464X4
- Brand Name: JEYI
- Origin: Mainland China
- Case Material: aluminum
- Supports: RAID0 RAID1 RAID5 JBOD

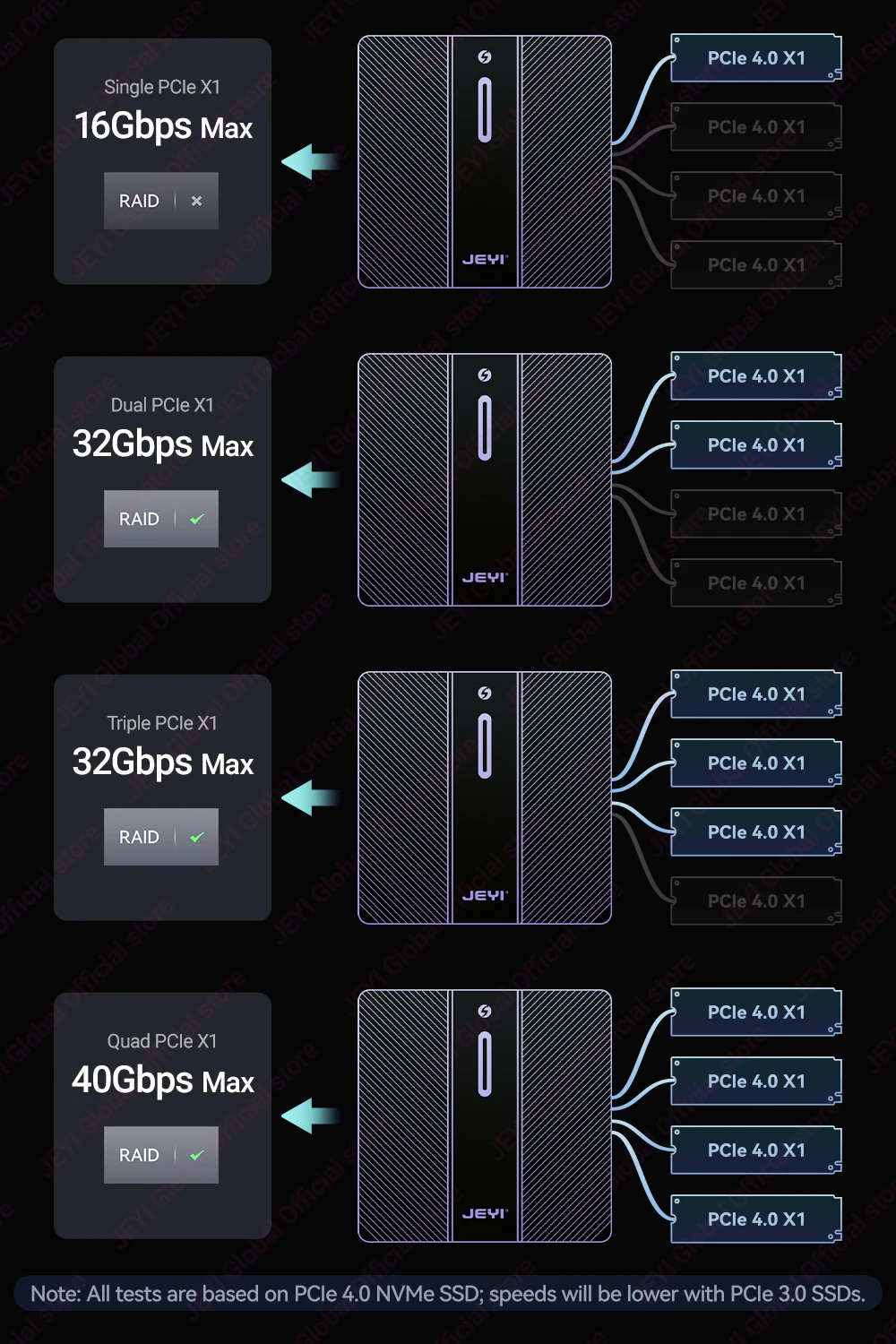

- Single disk max: 16Gbps
- Dual disk max: 32Gbps
- Triple disk max: 32Gbps
- Quad disk max: 40Gbps
- Feature 1: Single SSD max 8TB
- Feature 2: Soft RAID Support
- Feature 3: Compatible with thunderbolt 4/3
- Feature 4: Compatible with USB 4.0 40Gbps
- Feature 5: Aluminum Case
- Feature 6: Compact Design
JEYI 4-bay RAID NVMe SSD Enclosure – Supports USB4/TB 4, 40Gbps high-speed transfer, with turbine fan cooling, compatible with Mac/Windows, supports single-drive independent read/write and multi-drive RAID configuration
High-speed interface: Compatible with USB4 (40Gbps), Compatible withThunderbolt 3/4,backward compatible with USB 3.2/3.1/3.0/2.0.
Controller chip: High-performance ASM2464PDX chip.

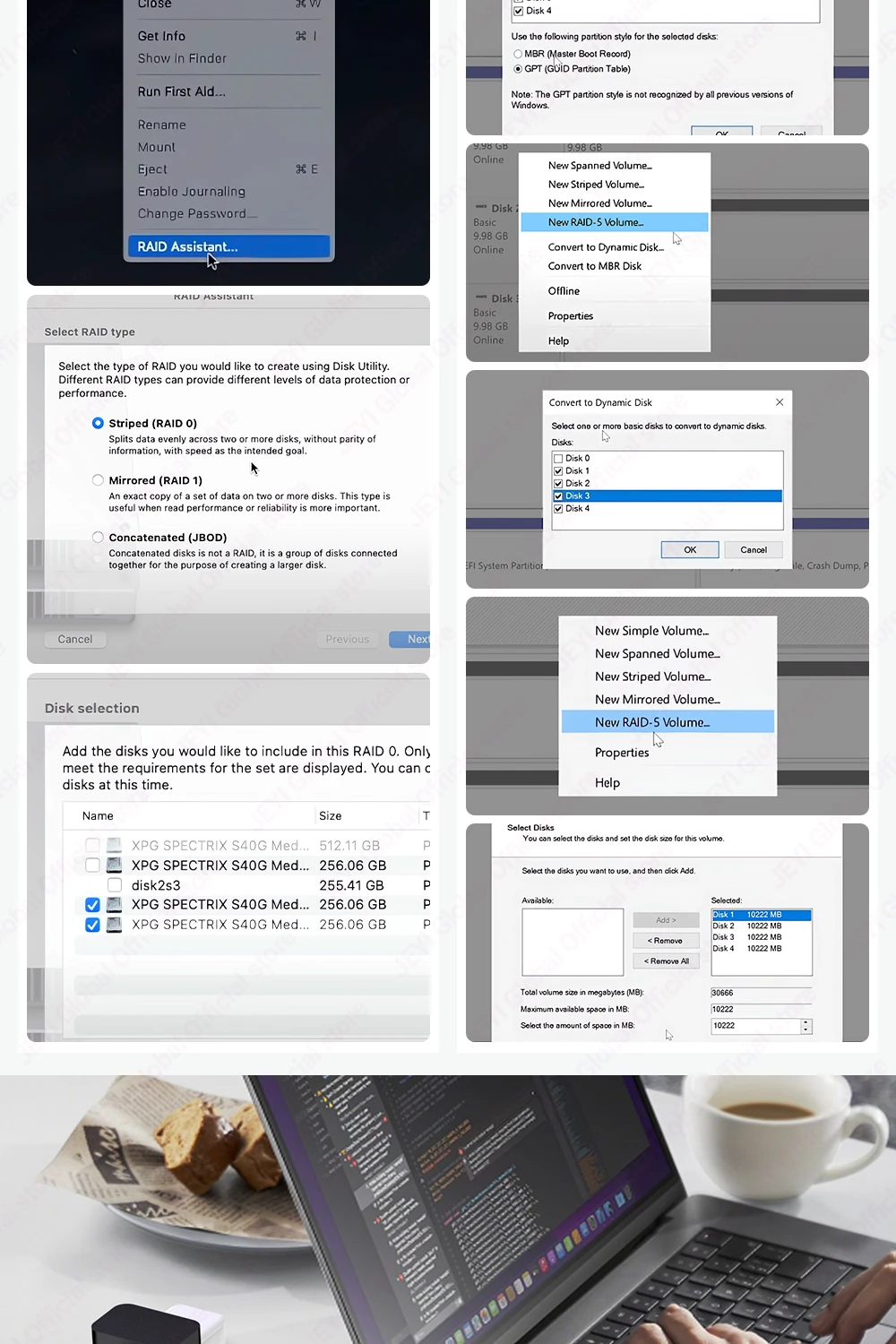

RAID support:
Mac system: Supports RAID 0, RAID 1, and JBOD.
Windows system: Supports RAID 0, RAID 1, RAID 5, and JBOD.
Transfer mode and speed:
Single disk mode (non-RAID): Up to 16Gbps per disk.
RAID 0: Up to 40Gbps for four disks.
RAID 1: Up to 24Gbps.
RAID 5: Up to 32Gbps.
JBOD: Up to 32Gbps.
Capacity support: Maximum 8TB NVMe SSD per disk, maximum total capacity of four disks up to 32TB.
Cooling design: All-aluminum casing, built-in turbine fan, improving cooling efficiency by 40%.
Fan Control: Press the button three times to switch fan modes (Stop/Low/Medium/High speed).
The indicator light color corresponds to different fan speeds.
Fan Light Colors: Blue for Low Speed, Orange for Medium Speed, Purple for High Speed, White for None
Power Requirements: Requires a 12V/3A power adapter (not included).

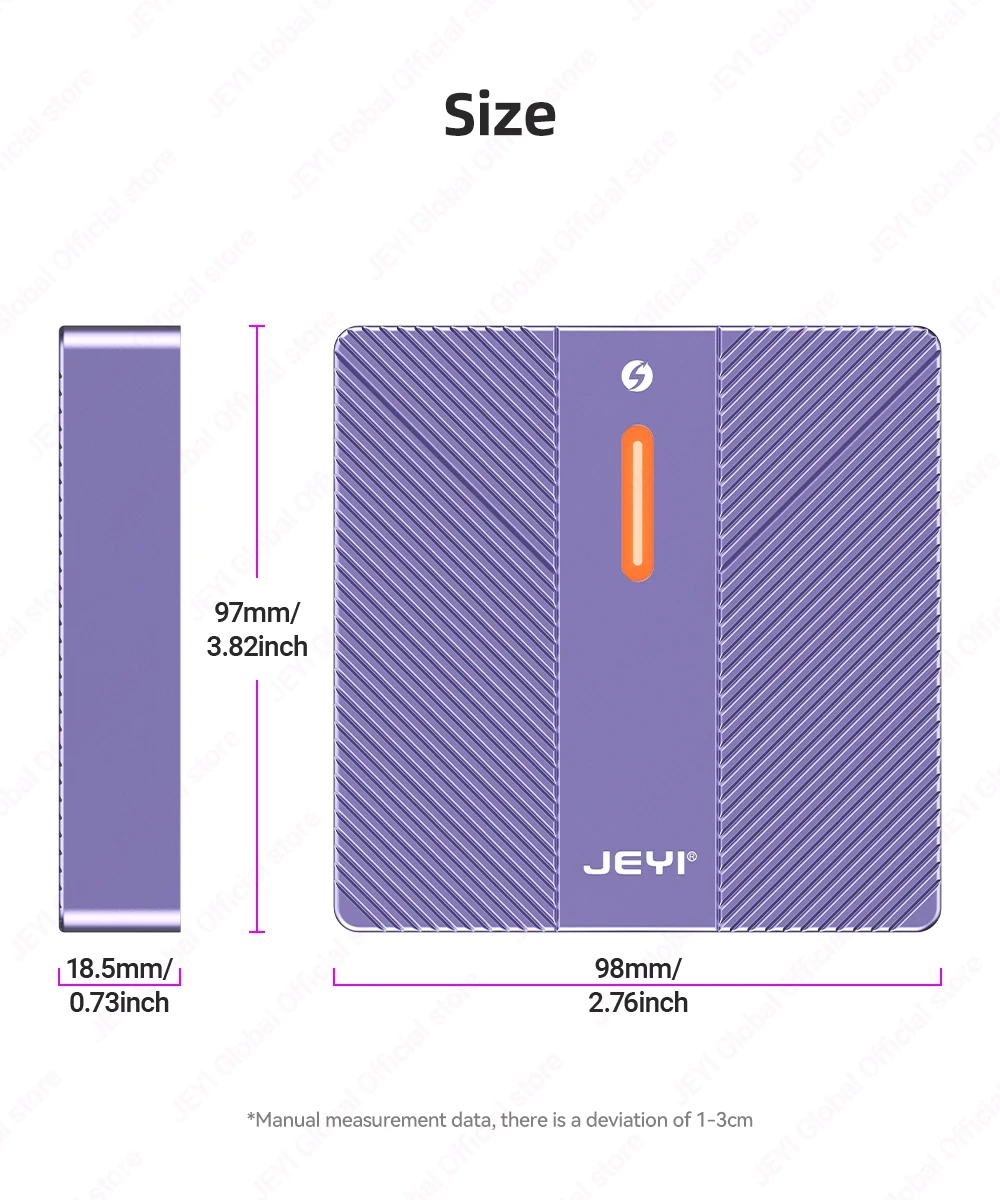

Physical Specifications:
Supported SSD Type: NVMe M.2 2280 (not compatible with SATA SSDs)
Supported SSD Interfaces: M-Key, B&M Key
Connection Method: Communicates with the host via PCIe 4.0 x1 lane.
Usage Modes:
Independent Mode: Each of the four drives can be used as an independent drive.

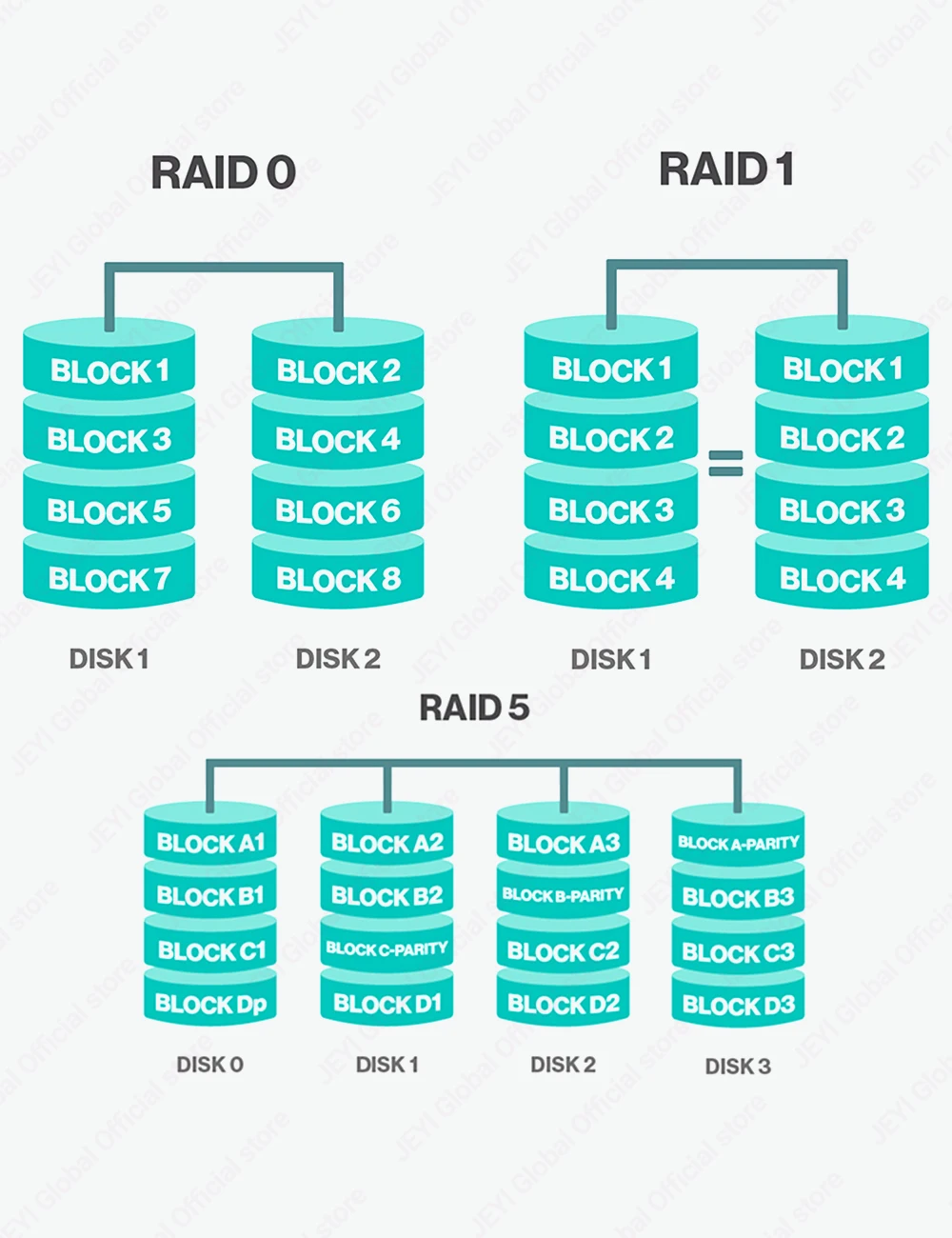

RAID Modes: Supports various RAID configurations, such as striping (RAID 0), mirroring (RAID 1), distributed parity (RAID 5), and cascading disks (JBOD).

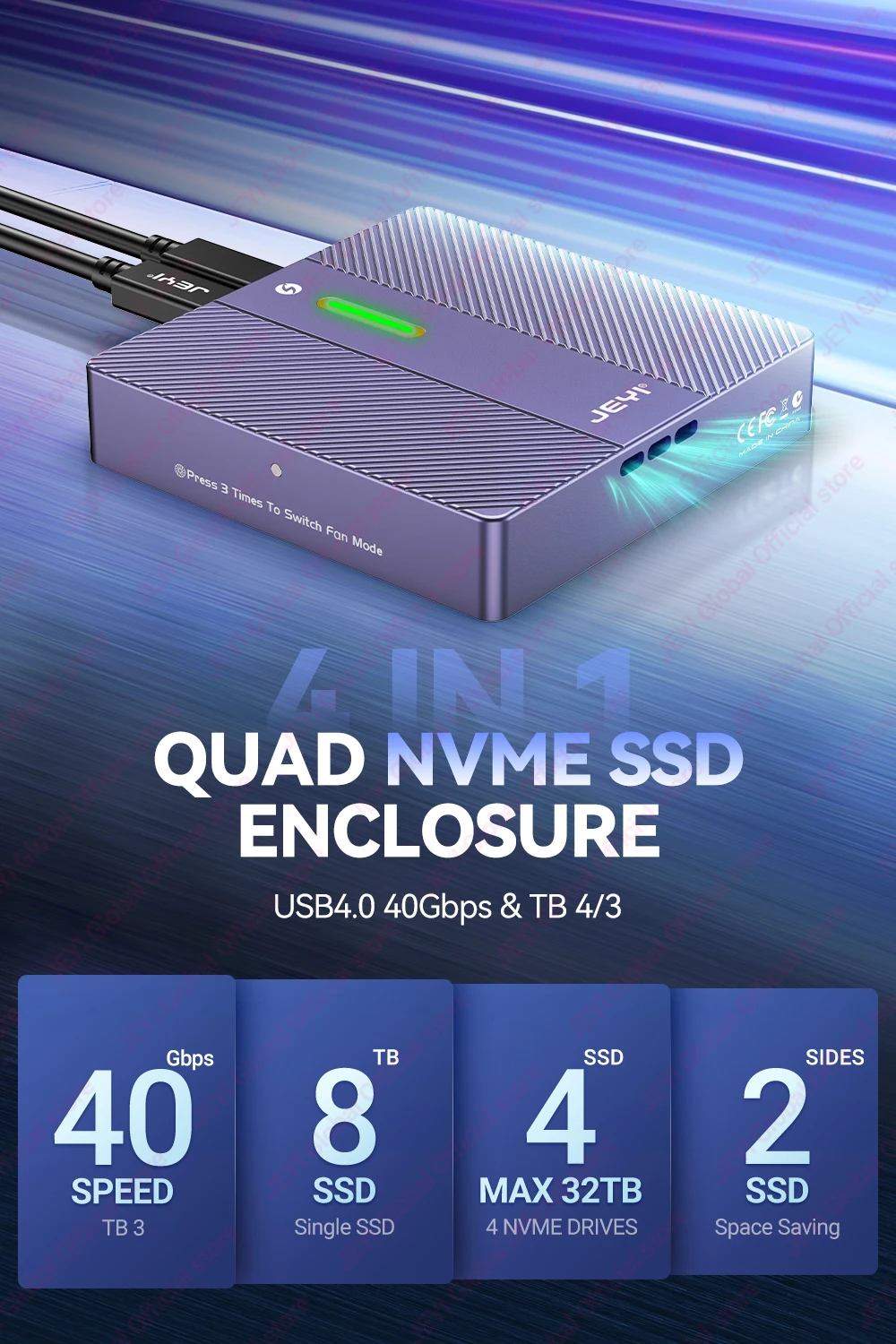

QUAD NVME SSD ENCLOSURE
USB4.0 40Gbps & TB 4/3

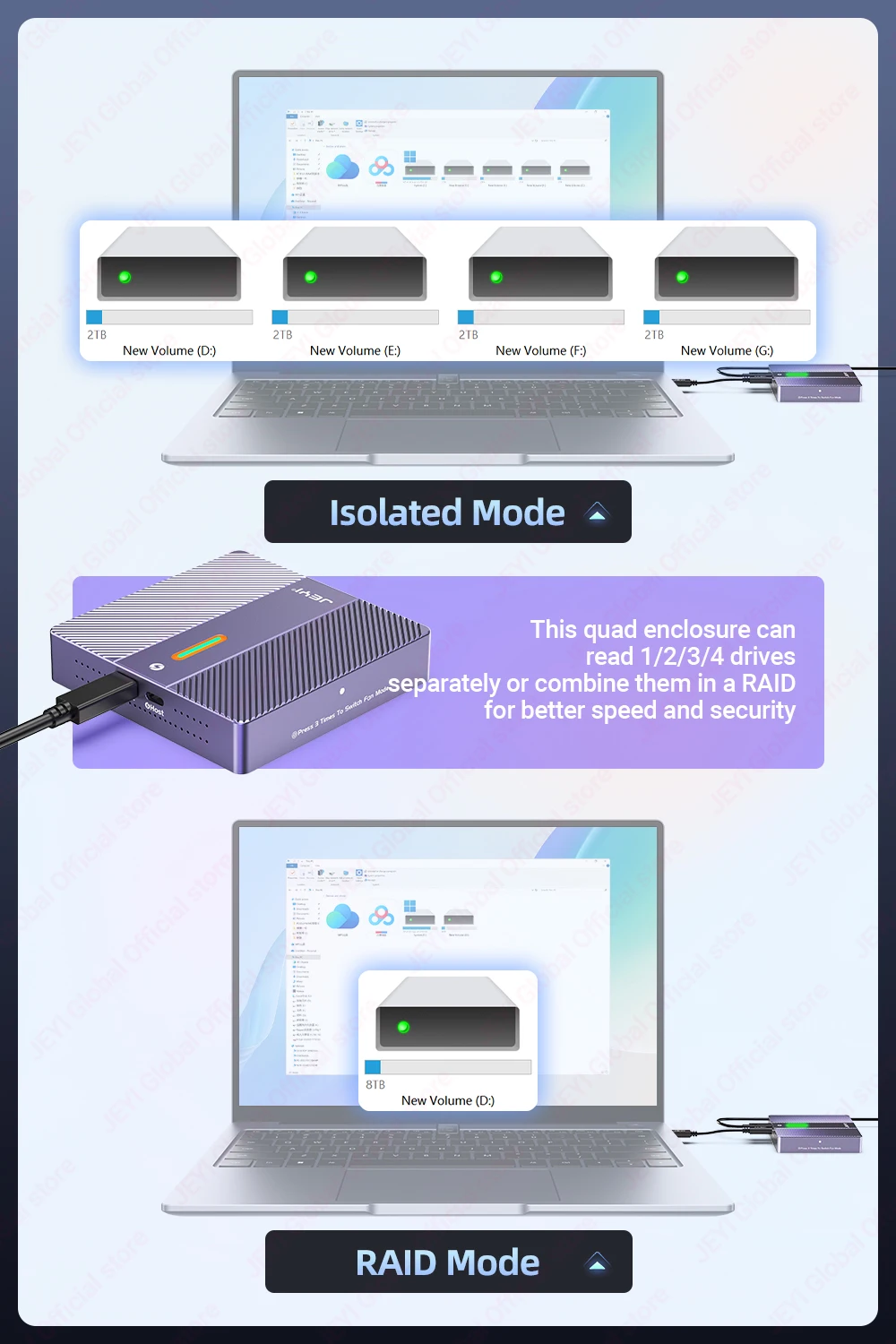

This quad enclosure can read 1/2/3/4 drives,separately or combine them in a RAlD for better speed and security

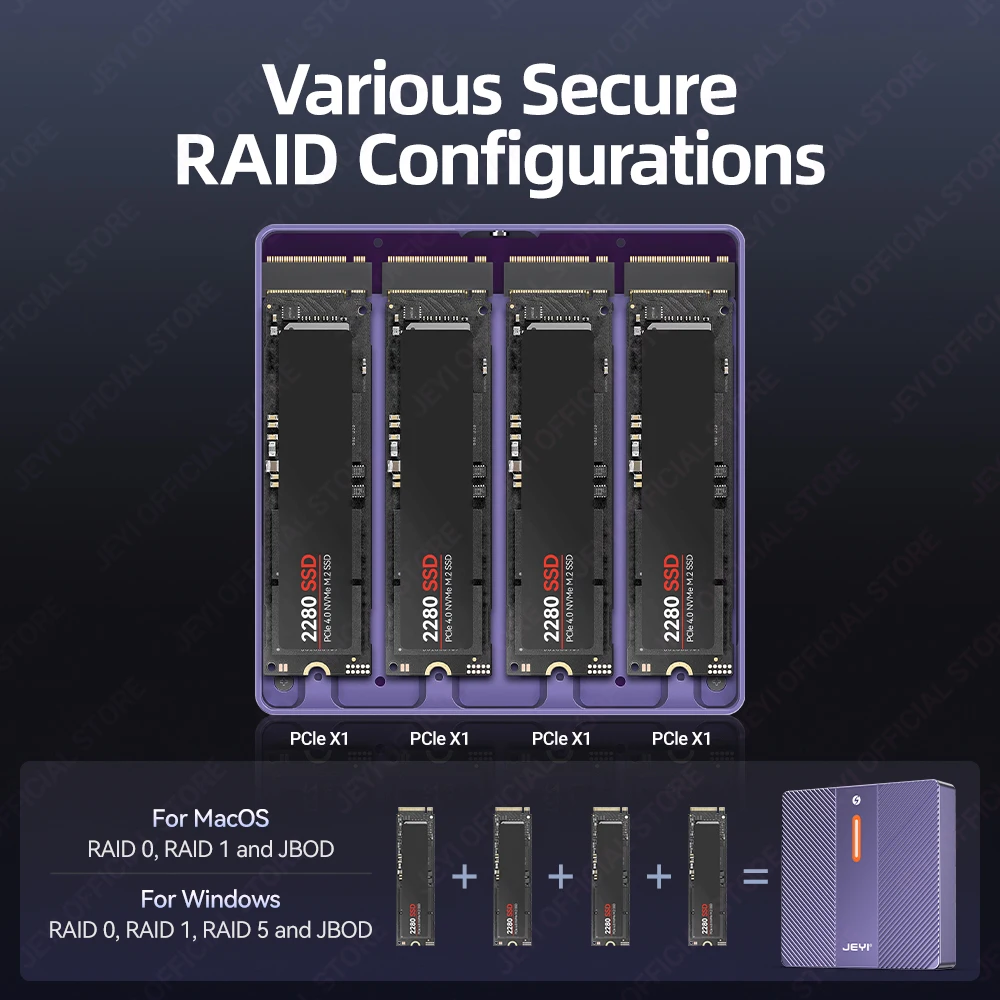

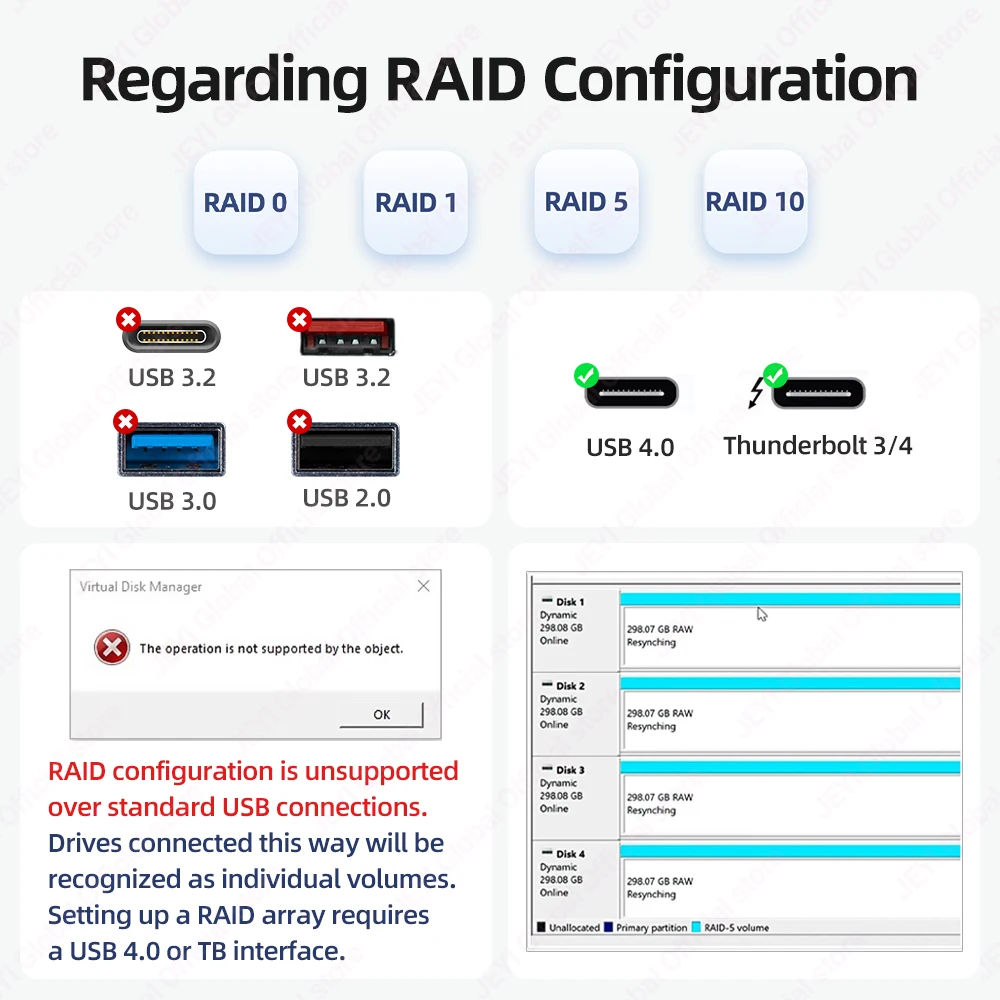

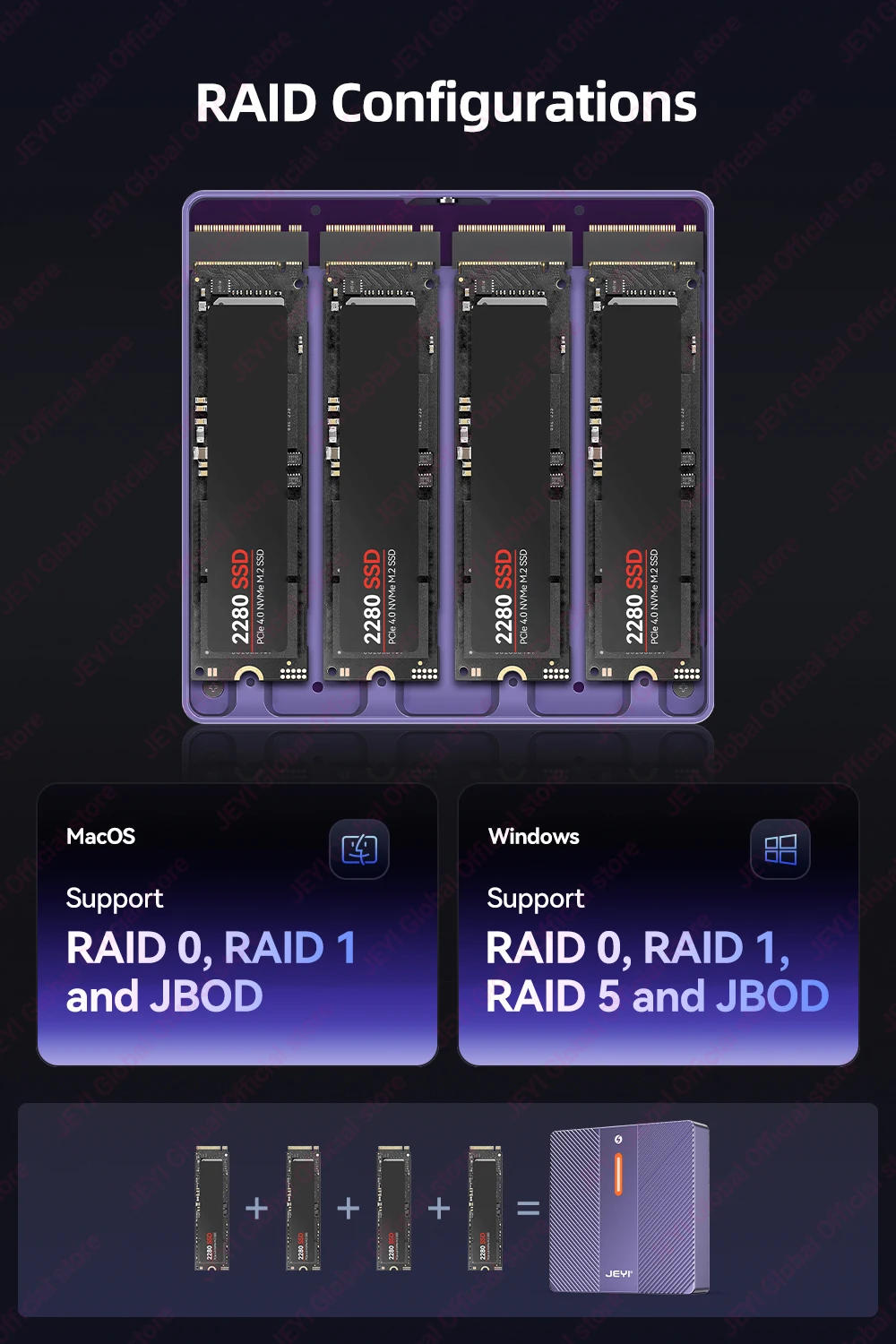

RAID Configurations

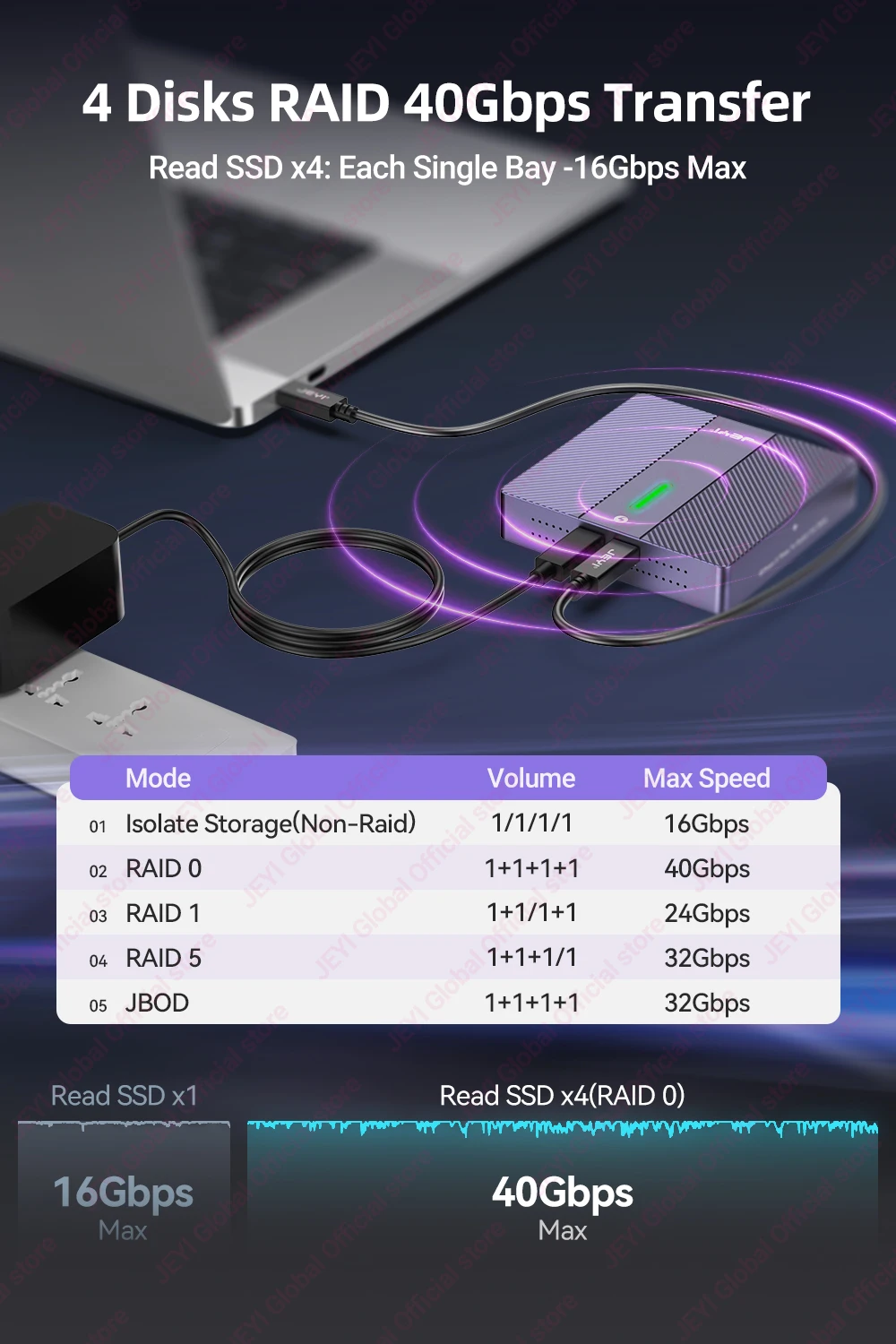

4 Disks RAlD 40Gbps Transfer
Read SSD x4: Each Single Bay – 16Gbps Max
Turbo Fan
Quickly removes a large amount of heat
Tip Observe the coler change ot the fan vents

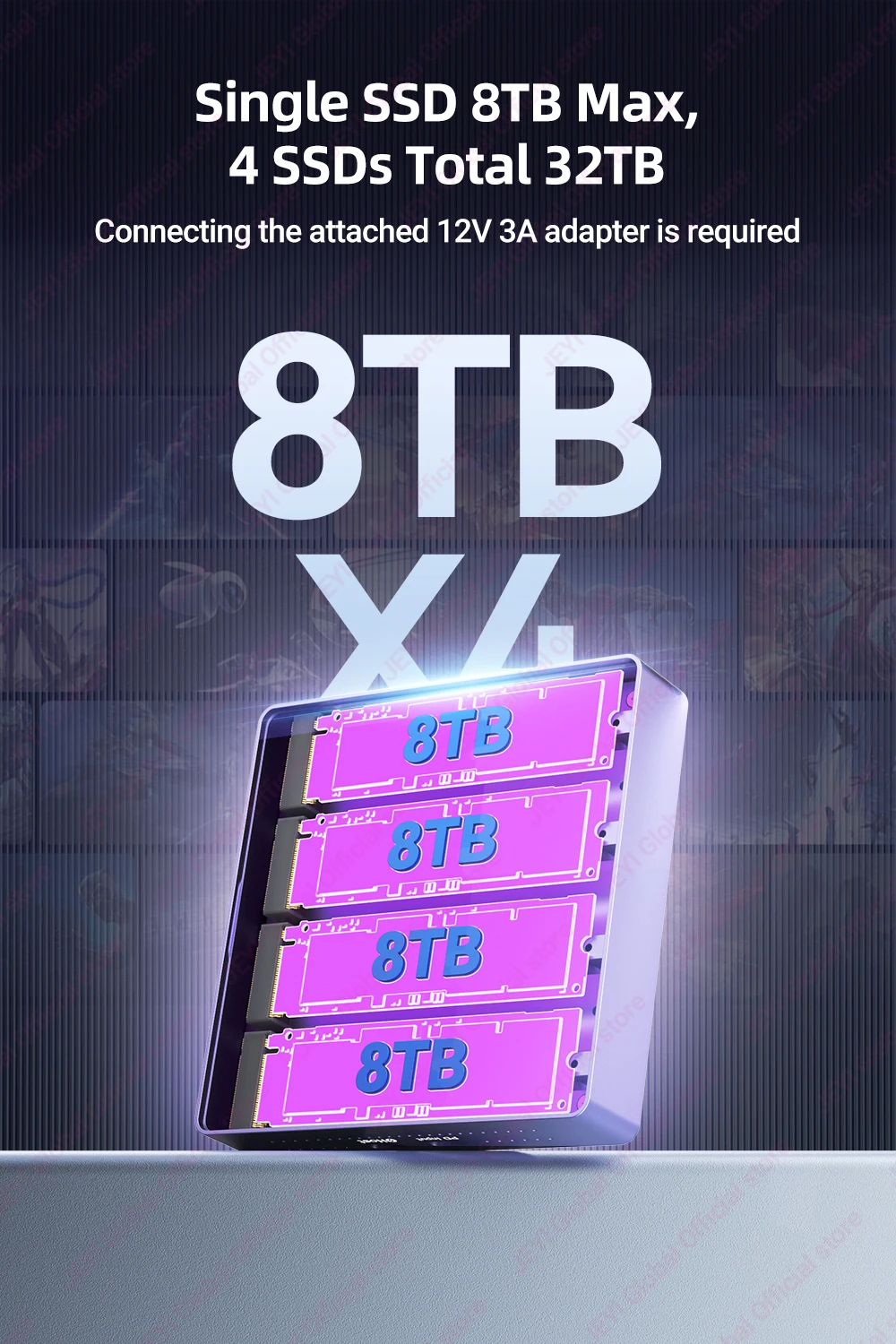

Single SSD 8TB Max, 4 SSDs Total 32TB
Connecting the attached 12V 3A adapter is required

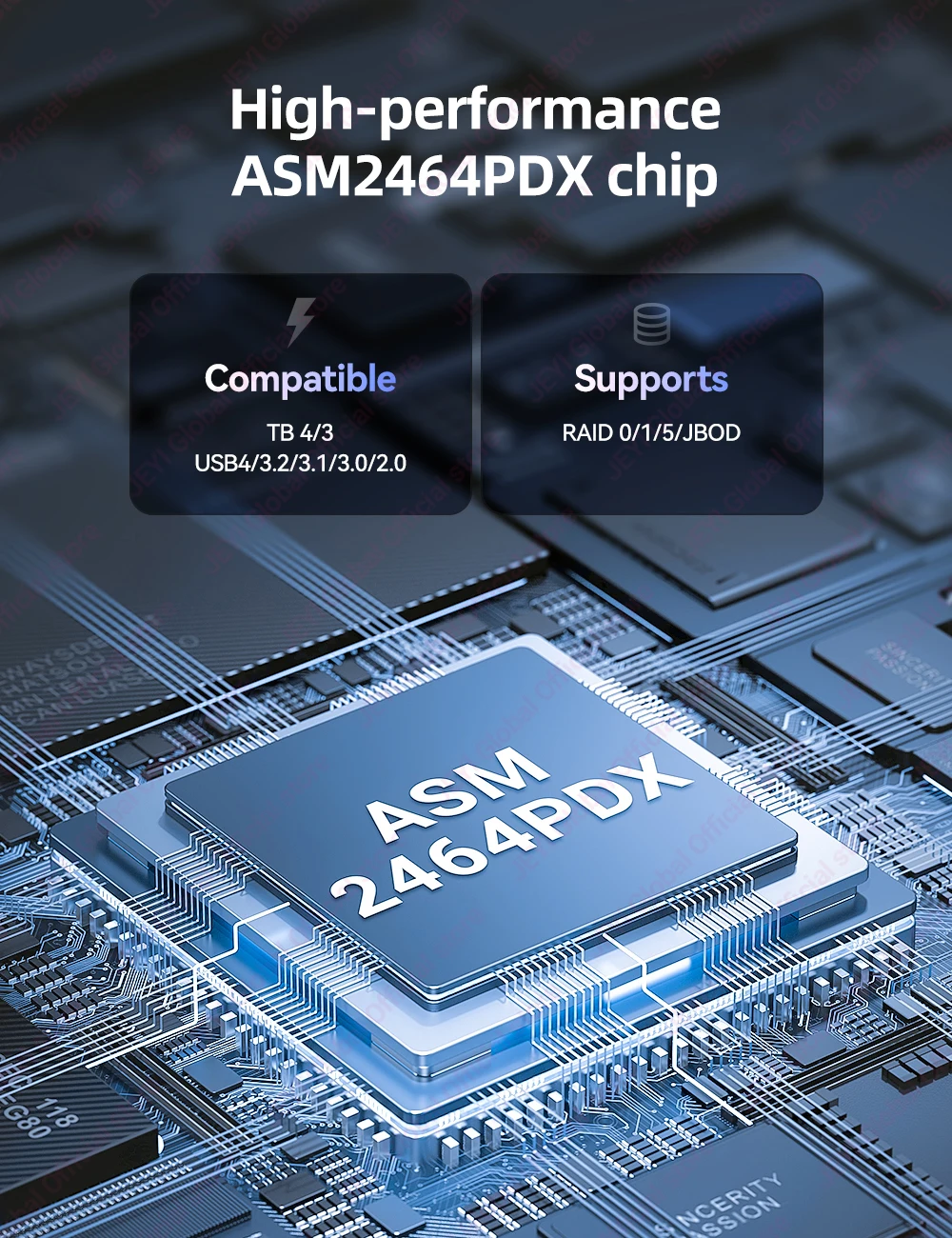

High-performance ASM2464PDX chip

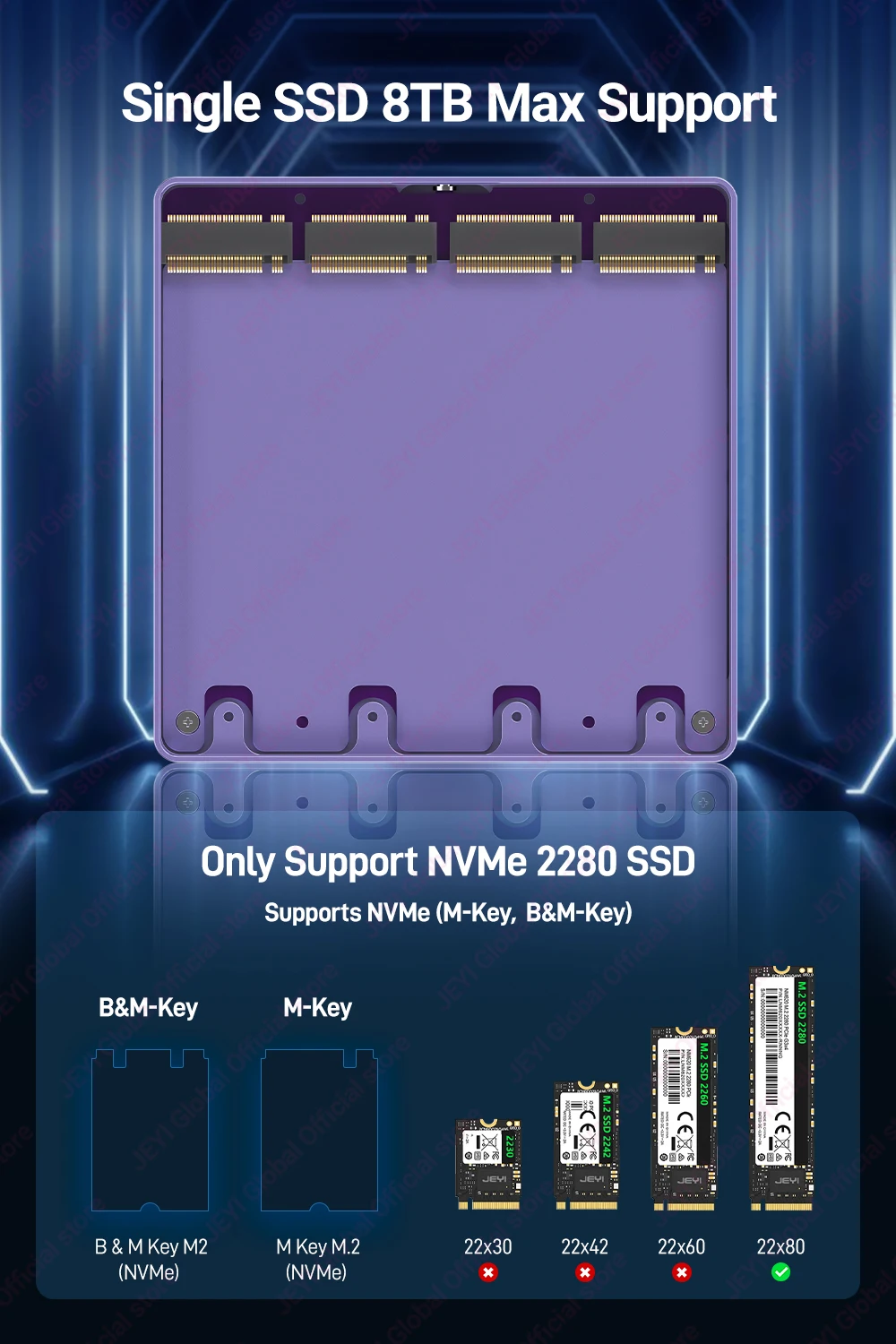

Single SSD 8TB Max Support

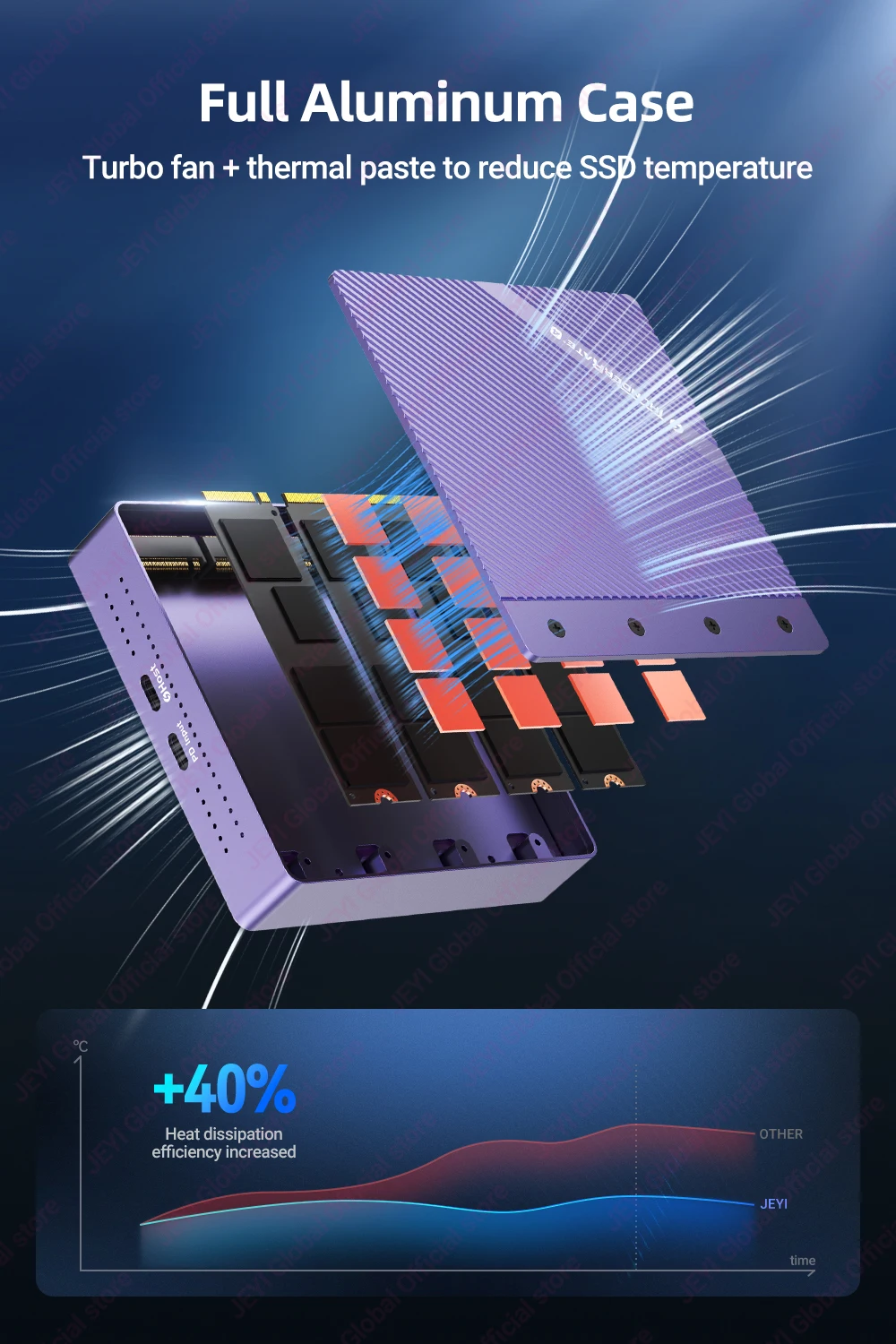

Full Aluminum case
Turbo fan + thermal paste to reduce SSD temperature

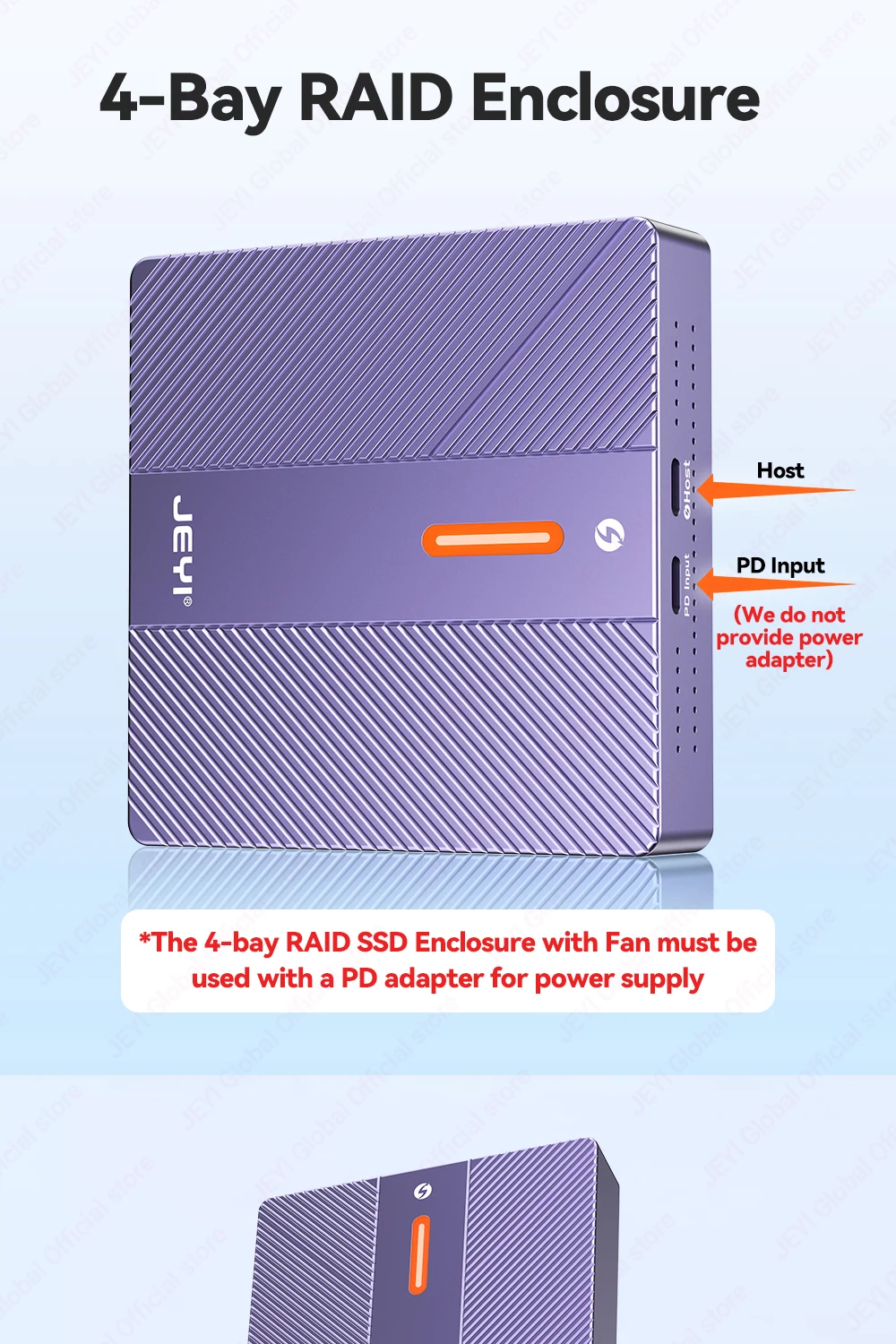

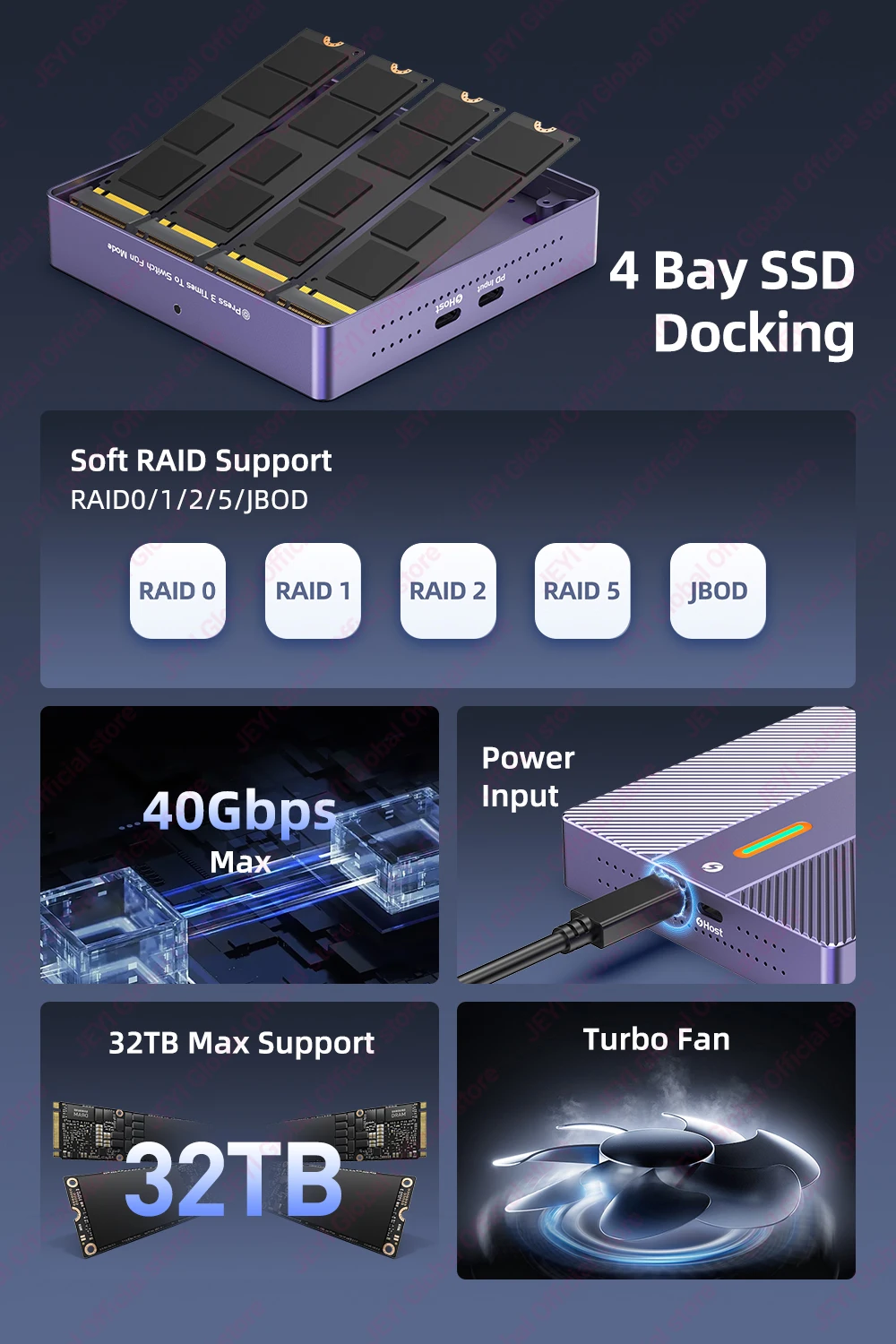

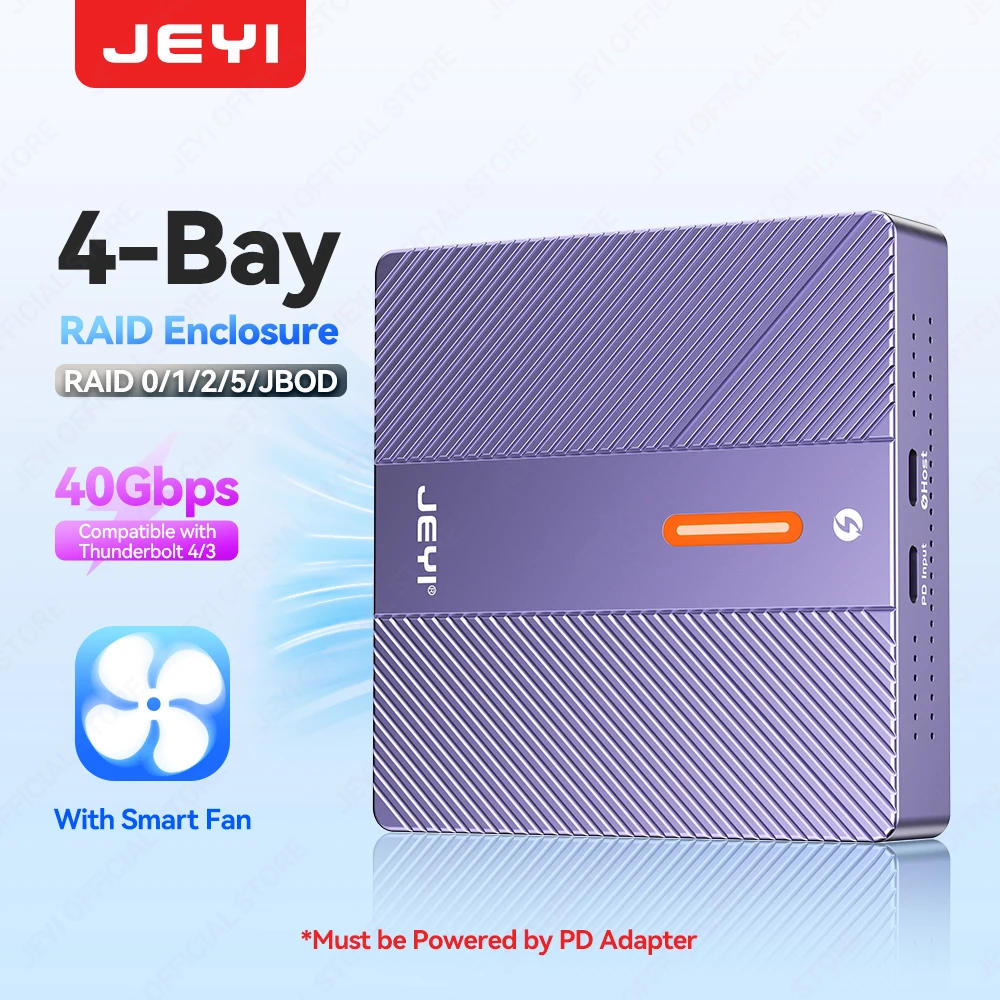

4-Bay RAlD Enclosure
*The 4-bay RAlD SSD Enclosure with Fan must be
used with a PD adapter for power supply
