4K HDMI-compatible Multiviewer Matrix 4×2 1080P Quad Screen Multi Viewer 4 in 2 out HDMI Multi-Viewer Splitter Seamless Switcher with IR for PC to HDTV

Description:

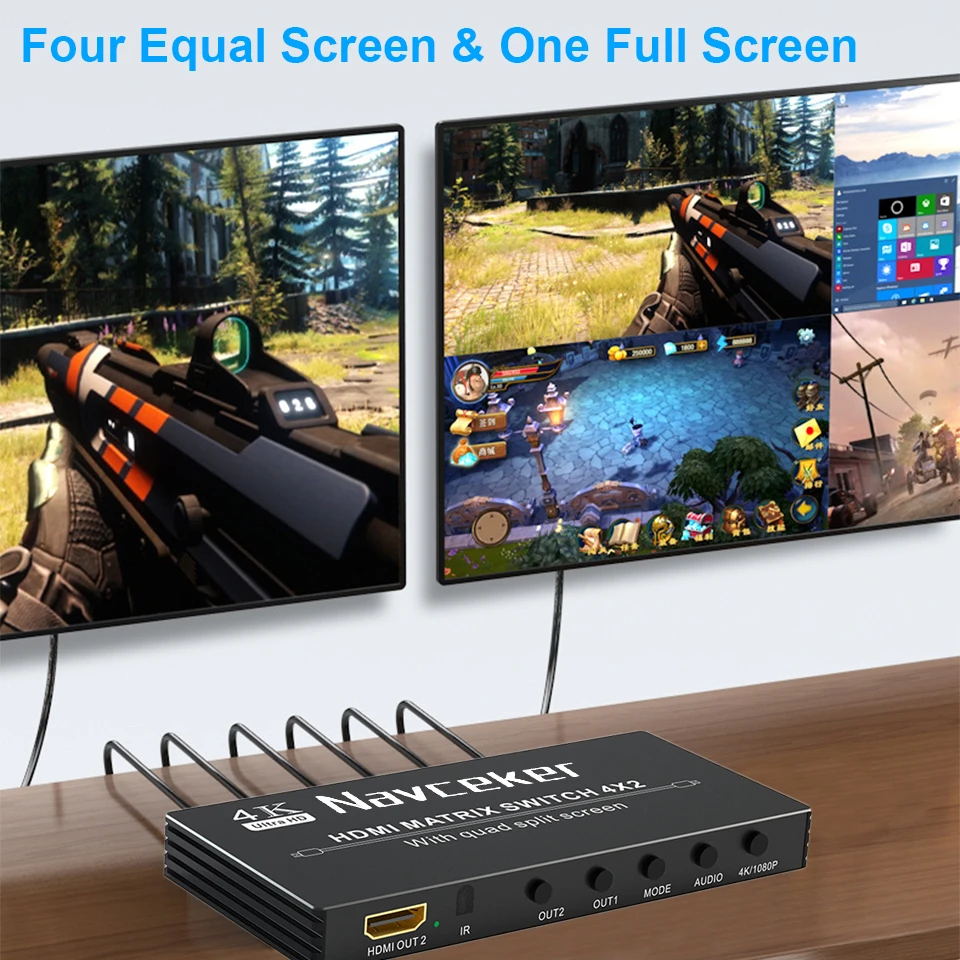

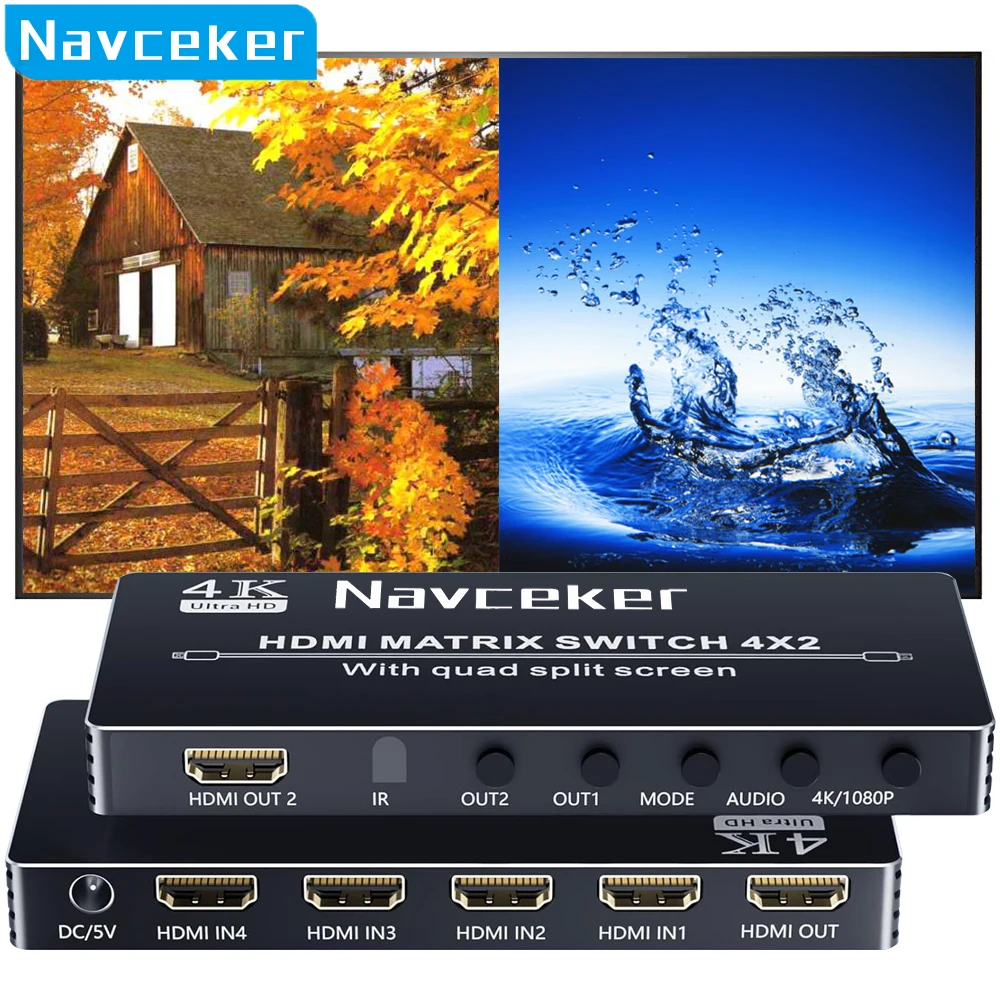

ZY-ASM208,Navceker 4K HDMI 4×2 Quad Multi-viewer Matrix is a high performance with 1 four HD screen segmentation,1 single full screen and seamless switching output switch. It can display 4 HD digital video signal on one multiview screen and one single full screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously. The control methods of the switch is flexible, it can be switched via button and IR control. It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.

Features:

HDMI Quad Multi-viewer 4X2 1080P 60Hz HDMI Quad Screen Segmentation Multiviewer Multi Viewer Seamless HDMI Switch Matrix for PC to HDTV

Specifications:

HDMI Switch Matrix Multi-Viewer 4 Ports, 4 in 2 Out HDMI Switcher with Remote, HDMI Multi-Switcher Support 4K 30Hz, 4 View Modes, Compatible with Security Camera, Fire Stick, Roku, Gaming Consoles

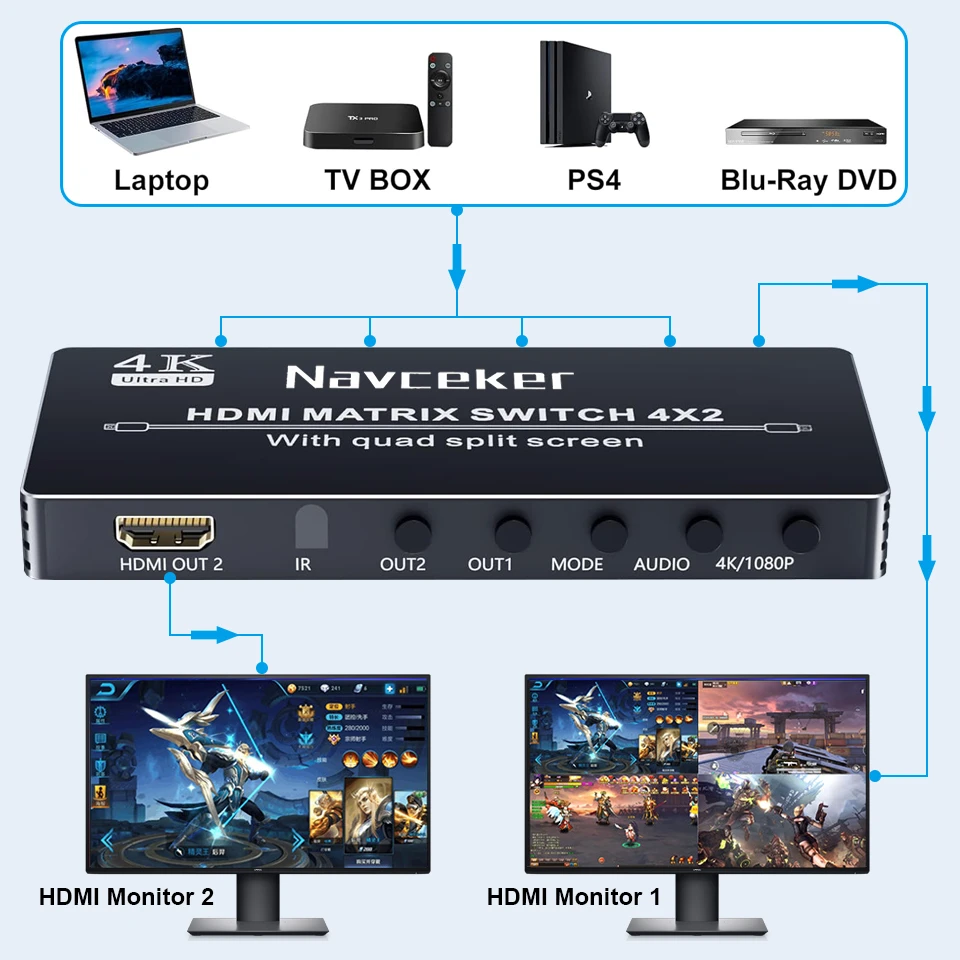

Support 4 HDMI input, 2 HDMI output；

Support HDMI 1.4 and HDCP 1.4

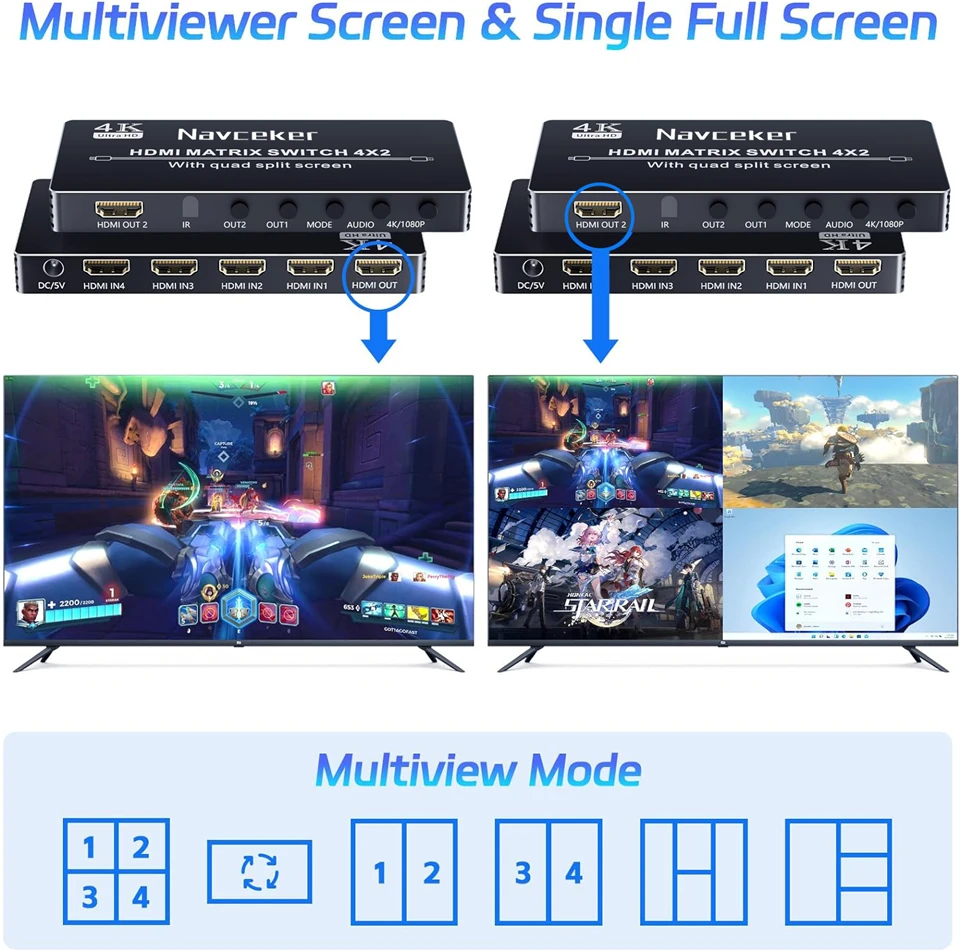

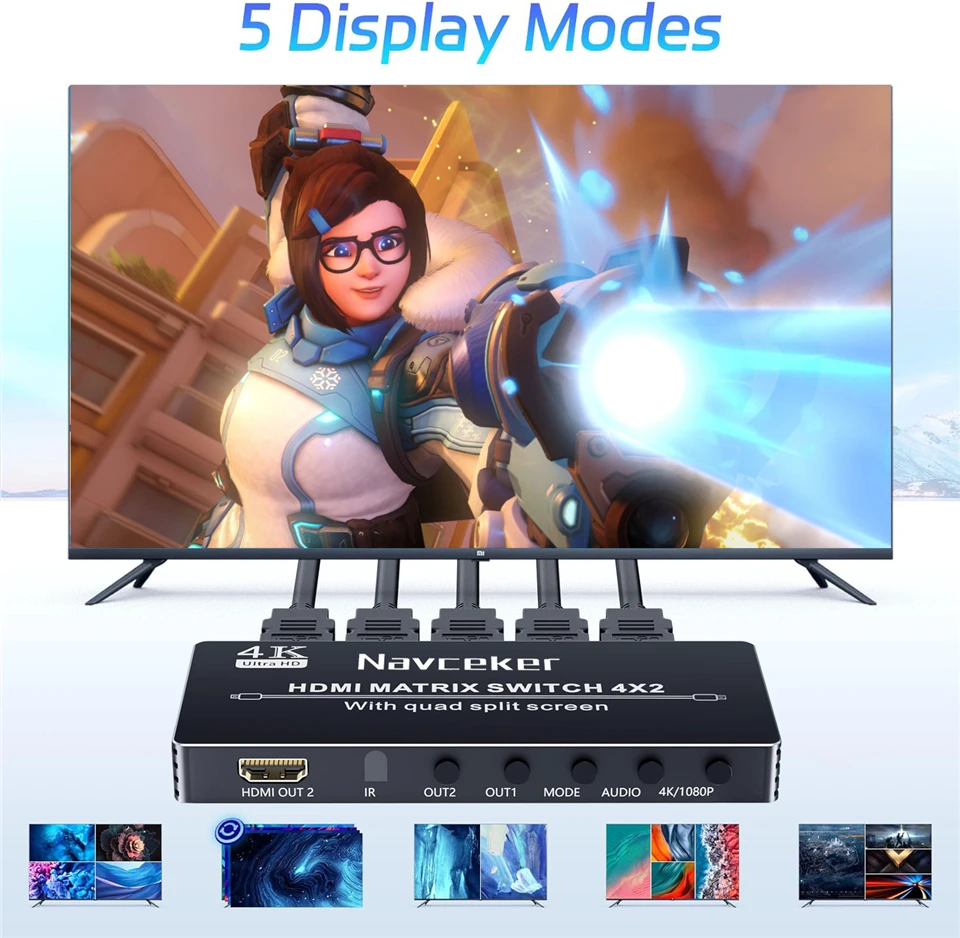

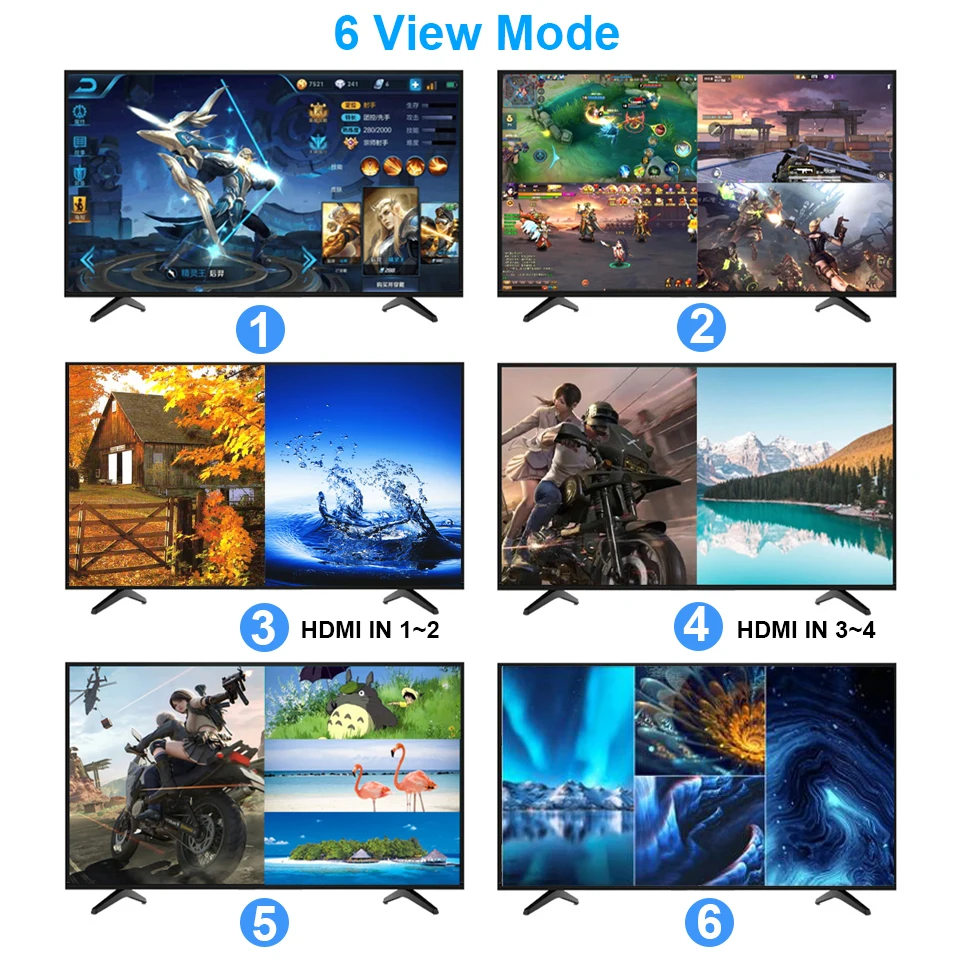

Support 4 channels HDMI signal screen segmentation；

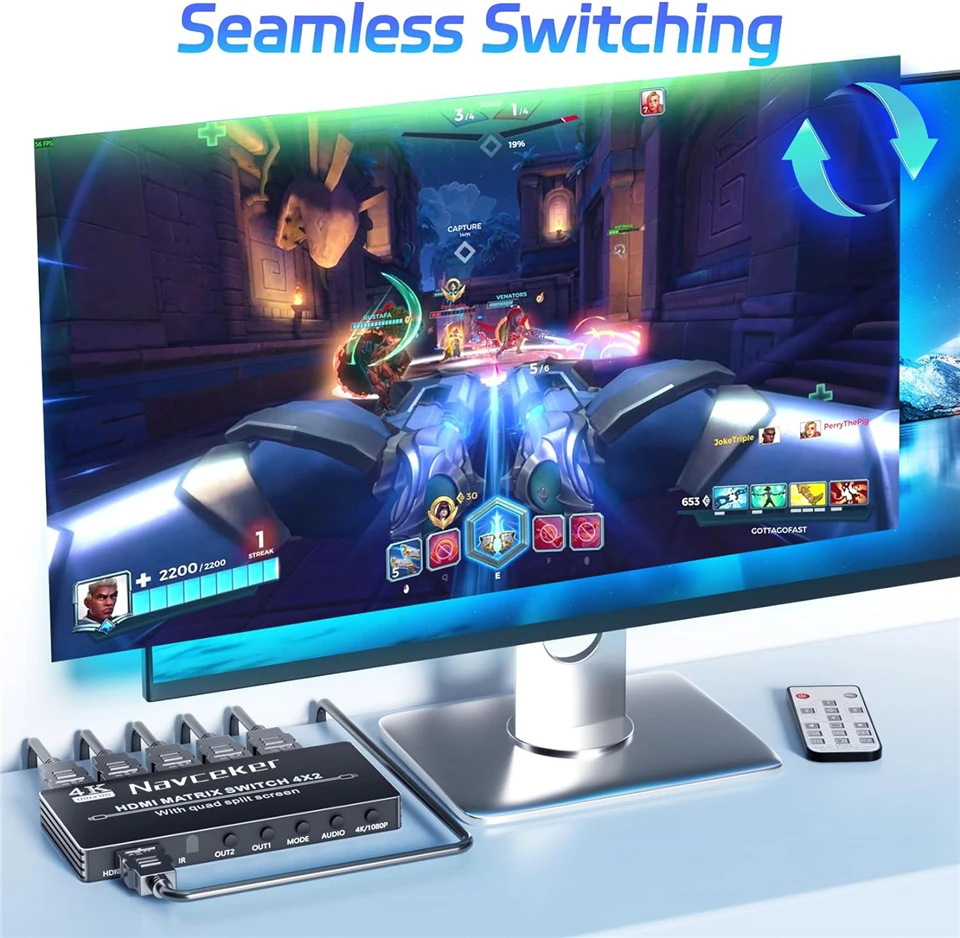

Support 4 channels HDMI signal seamless switching；

Support resolution up to 4K@30Hz/1080@60Hz；

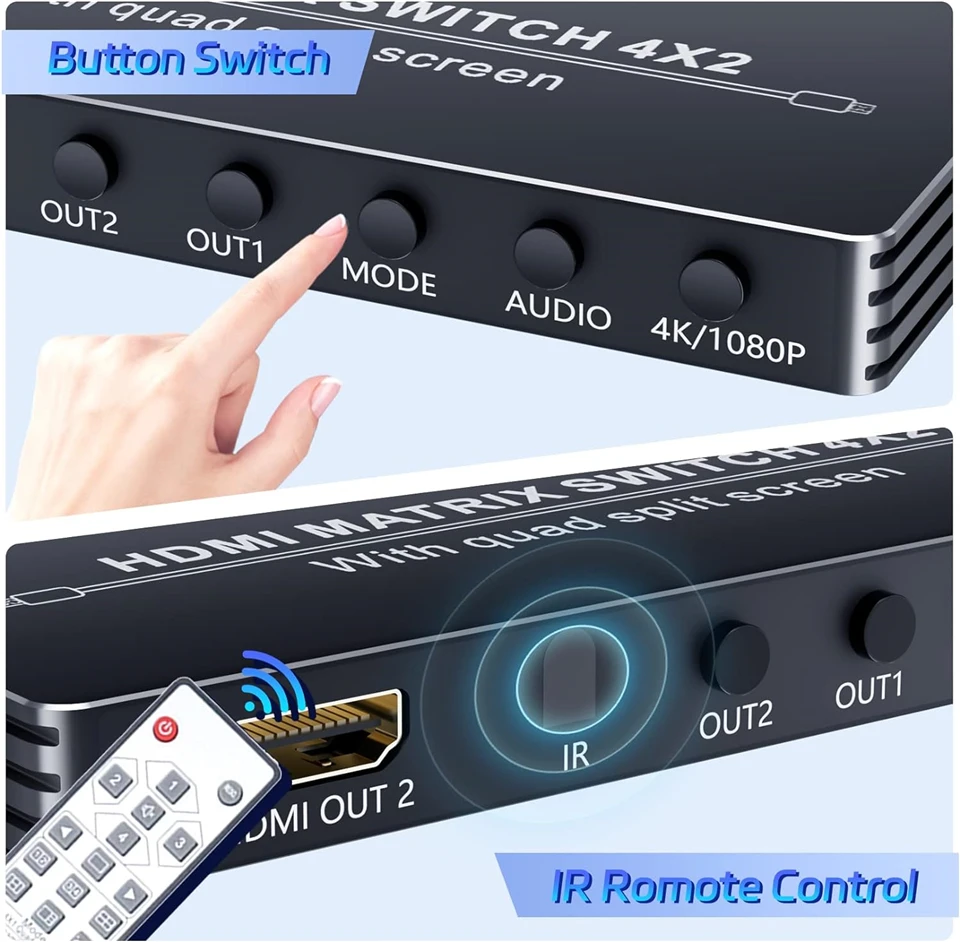

Support IR control；

Input support resolution:4K@25/30Hz,1080P,720P,1080i,1024X768,1360X768 etc

Support audio output format:PCM2

Input cable distance: ≤15M AWG26 HDMI standard cable

Output cable distance: ≤24M AWG26 HDMI standard cable

Max bandwidth:330MHz

Max baud rate:10.2Gbps

Maximum working current:0.3 A

Power adapter :5V/1A

Dimension(LxWxH):140x65x15mm

Important Note:
1) The 4K resolutions mean the switch comes with scaler and it can scale the 720P/1080P or lower resolutions to 4K@30Hz for better compatibility. Only refers to the resolution, the video quality cannot be improved.
2) Under Multi-viewer mode, the actual video quality regarding the watching experience, might be no more than 1080P as it compresses the video source to display them in a single display.
3) The seamless switch is only working under the full-screen mode and both 4 HDMI inputs must be 1080P@60Hz.
4) If you choose the 4X2 Matrix viewer model, the seamless switch is only available with output 1.
5) If you choose the HDMI Matrix Multiviewer model, the viewer function is only available with output 1.

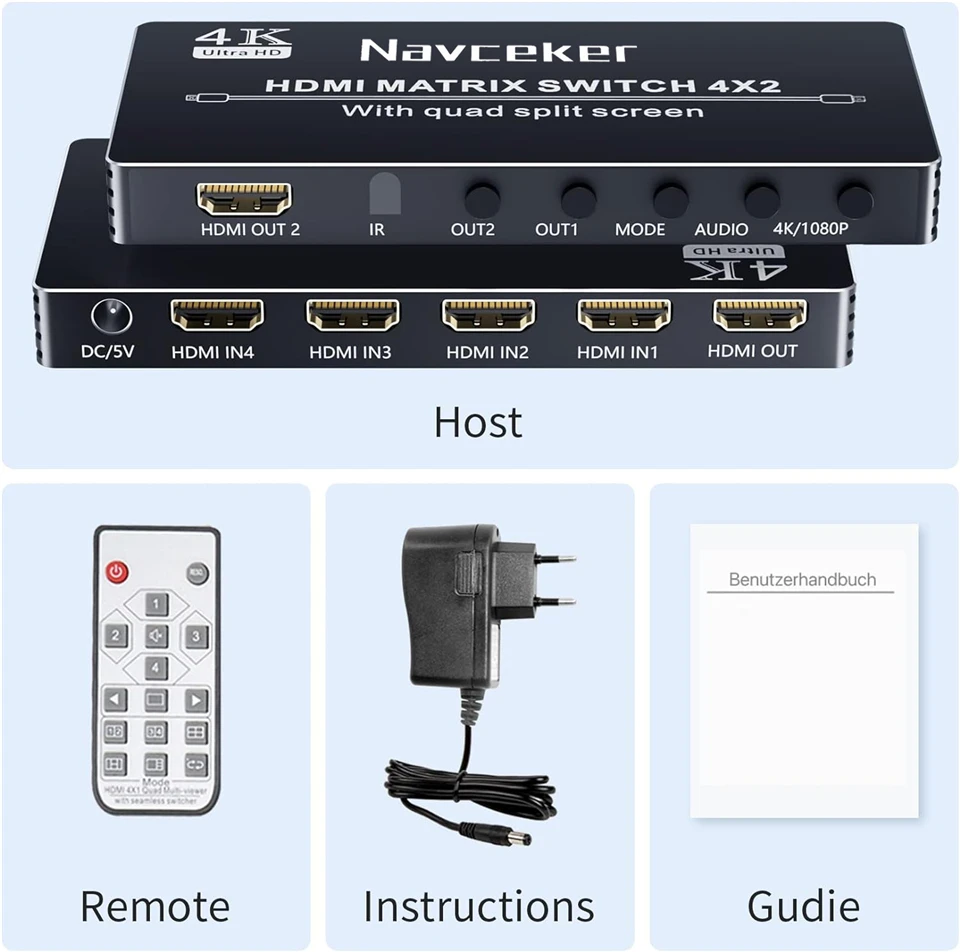

Package List:

1xHDMI 4×2 quad multi-viewer

1x DC Power adapter

1xRemote control(without 3A battery)

1xUser manual
